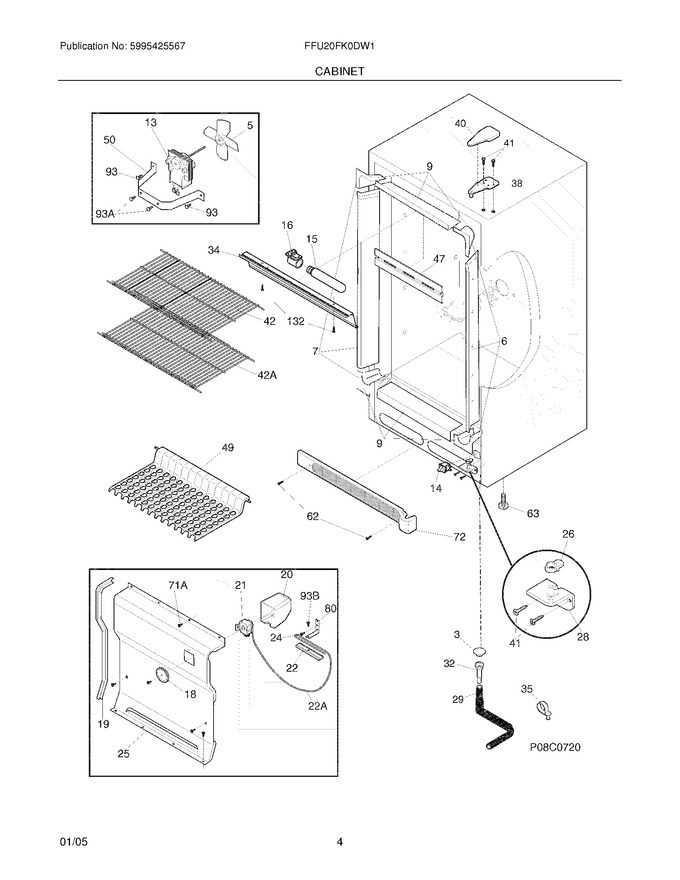

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	216503100		Screen-drain				$ 69.08
6	216604100		Breaker Kit W/corners		Appelez-nous	-
7	216603600		Breaker Kit W/corners,lock Catch		Appelez-nous	-
9	216603300		Breaker Kit W/corners,32`` ,top Or Bottom				$ 94.19
14	216822900		Switch,light/lamp ,ramp			Immediately	$ 77.96
15	5304517886		Light Bulb/lamp   (Replaces: 216846400)			Immediately	$ 81.18
16	297139501		Socket,light/lamp ,25 W   (Replaces: 216817600)				$ 21.69
18	216707200		Knob,temp Control				$ 49.00
19	216204901		Gasket-cover Evap				$ 9.08
20	216230300		Cover, Temp Control				$ 49.88
21	5304513033		Control- Temperature   (Replaces: 216715200)			Immediately	$ 92.38
22	216823500		Clamp, Cap Tube, Cold Control				$ 15.27
24	5300052943		Screw, Clamp, Truss Hd Cr, Control				$ 5.30
25	216820300		Cover-evaporator		Appelez-nous	-
26	216503300		Ramp,door Closer				$ 9.80
28	216247400		Hinge-bottom		Appelez-nous	-
29	5304512272		Hose Drain   (Replaces: 216313500)			Immediately	$ 17.67
32	5304511843		Drain   (Replaces: 5308005500)				$ 15.27
34	216816200		Shield-light				$ 70.72
35	216629700		Clip		Appelez-nous	-
38	216939100		Hinge-upper				$ 59.54
40	297164400		Cover-hinge   (Replaces: 216809000)				$ 14.06
41	216954400		Screw,12-24 X.700 Hwh ,hinge Mtg.		Appelez-nous	-
42	216458400		Shelf,14.50x27.88 ,(2)		Appelez-nous	-
47	297192903		Plate,baffle ,snap Fit   (Replaces: 216661600)			Immediately	$ 28.12
49	216937701		Trivet   (Replaces: 216937700)				$ 110.85
50	216394050		Bracket,fan Motor Mount   (Replaces: 216394000)				$ 25.28
62	131420300		Screw, Cr Truss Head, 8-18ab X 0.750				$ 14.96
63	216396900		Screw, Leveling Foot, Plastic, Adjustable			Immediately	$ 42.65
72	297036907		Grille/kickplate,32`` ,white   (Replaces: 216946600)				$ 43.65
80	06594601		Bracket, Control				$ 17.64
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5303161215)			Immediately	$ 12.05
132	5303283898		Screw, 6-20ab X 3/8		Appelez-nous	-
22A	5303916855		Tube,sensor Sleeve ,plastic ,clear				$ 67.73
42A	216458500		Shelf,wire ,16.69x26.88 ,white ,(3)		Appelez-nous	-
71A	5304416289		Screw,ph Truss Head ,8-18ab X 0.47 ,evap Panel		Appelez-nous	-
93A	216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping   (Replaces: 216629600)				$ 14.46
93B	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
F13	297309000		Motor,fan ,115 V   (Replaces: 216934100)			Immediately	$ 61.47
F5	5308000010		Fan Blade   (Replaces: 216325600)			Immediately	$ 54.48
NI	5303321319		Paint, Touch-up, White   (Replaces: 5303305324)			Immediately	$ 14.96
NI	216502400		Grommet-shelf Mtg				$ 18.48
NI	09948773		Insulation, Drain Tube				$ 12.60
NI	216795508		Energy Guide		Appelez-nous	-
NI	216912400		Screw,hex Washer Head ,no.8-32 X .500 ,bracket Fan Mtr,(2)		Appelez-nous	-
