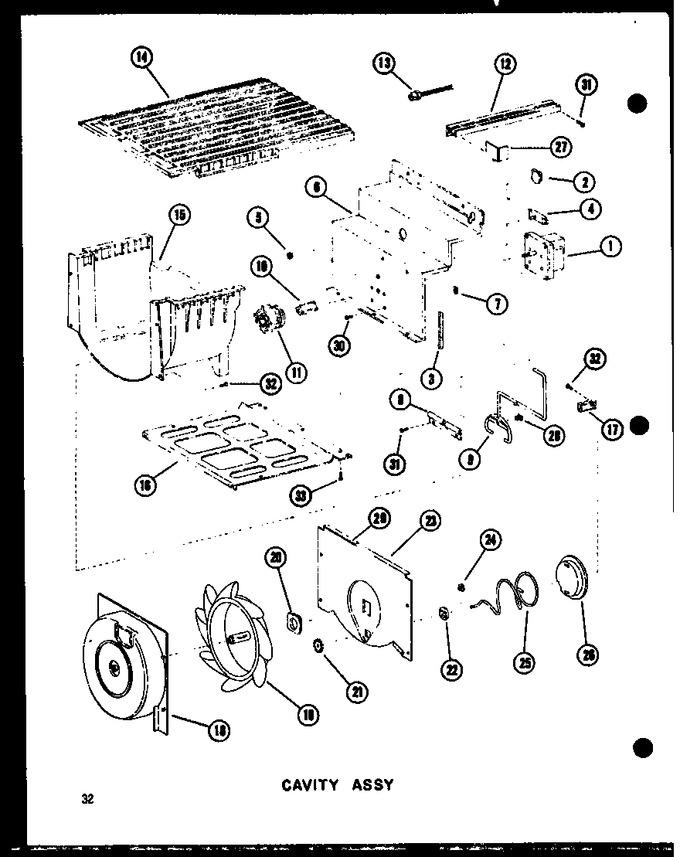

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | C3696003 | Motor |
|
- | |||||
| 2 | C8726901 | Wiring Harness |
|
- | |||||
| 3 | A3030301 | Gasket (inch) |
|
- | |||||
| 4 | M0341501 | Switch-sealed |
|
- | |||||
| 5 | M0281404 | Nut, Switch |
|
- | |||||
| 6 | D7181902 | Rear Chassis |
|
- | |||||
| 7 | M0272504 | Washer |
|
- | |||||
| 8 | B5697601 | Holder-shutoff Arm |
|
- | |||||
| 9 | D7341901 | Arm-shut Off |
|
- | |||||
| 10 | B5697701 | Spline-drive |
|
- | |||||
| 11 | C3693601 | Drive Link |
|
- | |||||
| 12 | B5695901 | Rail |
|
- | |||||
| 13 | D7344302 | Wiring Harness |
|
- | |||||
| 14 | D7182702 | Shelf, Bottom, Upper Fz |
|
- | |||||
| 15 | D7180302 | Ice Bucket A |
|
- | |||||
| 16 | D7344101 | Bottom-chassis |
|
- | |||||
| 17 | C3694201 | Detent-shut Off Arm |
|
- | |||||
| 18 | D7192601 | Cover, Lift Wheel |
|
- | |||||
| 19 | D7192701 | Wheel-lift A |
|
- | |||||
| 20 | B5698401 | Bushing A |
|
- | |||||
| 21 | B5700401 | Gear Pinion A |
|
- | |||||
| 22 | B5700501 | Bushing A |
|
- | |||||
| 23 | D7182001 | Partition Panel A |
|
- | |||||
| 24 | M0274601 | Ring-retaining A |
|
- | |||||
| 25 | C3693901 | Helix |
|
- | |||||
| 26 | C3692901 | End Cap-helix A |
|
- | |||||
| 27 | B5714301 | Cover-wiring |
|
- | |||||
| 28 | A0288701 | Grommet |
|
- | |||||
| 29 | A3221801 | Strip A |
|
- | |||||
| 30 | M0202528 | Screw |
|
- | |||||
| 31 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 32 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.57 | |||||
| 33 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 8.38 |
