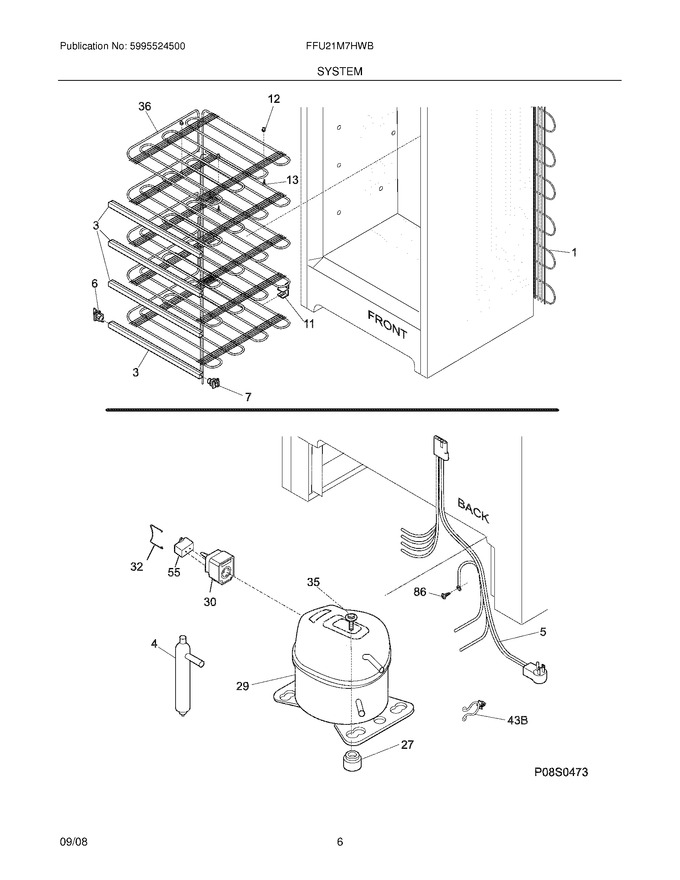

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304509723 | Trim-shelf,evaporator (Replaces: 216847806) |
|
Immediately | $ 35.34 | ||||
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 6 | 297001600 | Support-shelf,front Lh |
|
$ 20.09 | |||||
| 7 | 297001500 | Support-shelf,front Rh |
|
$ 20.09 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138901 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
- | |||||
| 27 | 216498900 | Grommet,compressor (Replaces: 5308002681) |
|
$ 14.46 | |||||
| 30 | 216954236 | Controller,compressor (Replaces: 216954215) |
|
$ 104.20 | |||||
| 32 | 216954300 | Clip,controller |
|
$ 18.90 | |||||
| 35 | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
$ 13.95 | |||||
| 55 | 297286803 | Capacitor-run,15 Mf (Replaces: 216985001) |
|
Immediately | $ 31.97 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 15.17 | |||||
| 43B | 297315800 | Clip (Replaces: 297048400) |
|
$ 11.25 | |||||
| F1 | 5300083897 | Condenser |
|
$ 598.19 | |||||
| F29 | 5304478809 | Compressor Kit (Replaces: 5304463417) |
|
Immediately | $ 649.95 | ||||
| F36 | 5304506302 | Evaporator,tubing Assy ,white (Replaces: 297212100) |
|
$ 360.66 | |||||
| F5 | 297171900 | Harness-main,w/light |
|
$ 73.71 | |||||
| FNI | 297366805 | Cord-power,flat (Replaces: 297169900) |
|
$ 76.31 | |||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 12.05 | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| NI | 297102800 | Spacer-tube |
|
- |
