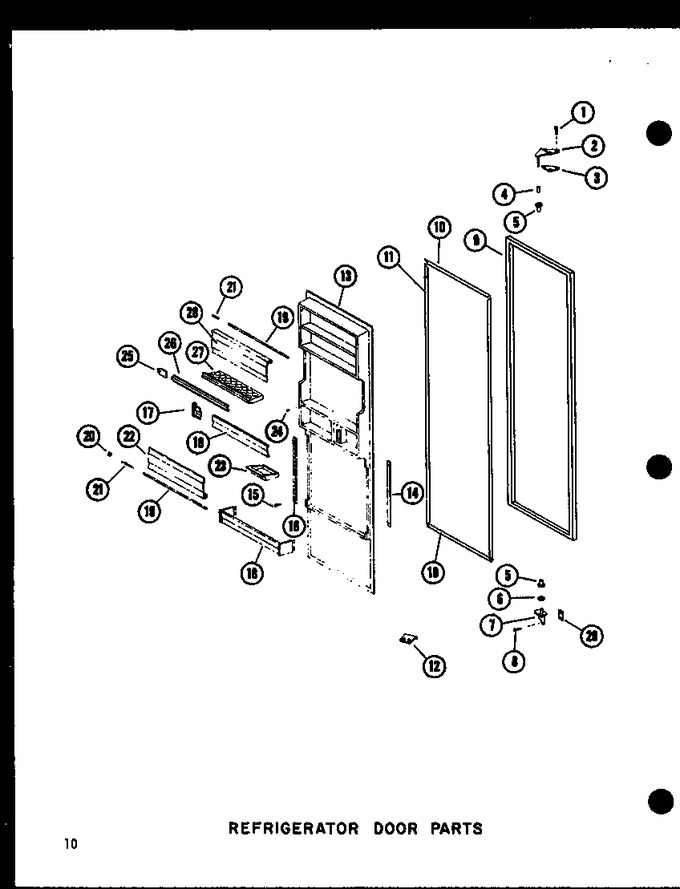

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	M0254331		Screw		Appelez-nous	-
2	C3622601		Hinge		Appelez-nous	-
3	A3076402		Shim		Appelez-nous	-
3	A3076401		Hinge Shim		Appelez-nous	-
4	A3132401		Bushing		Appelez-nous	-
5	B0539806		Bearing Flat (top Hinge)		Appelez-nous	-
5	B0539807		Flat Bearing (bottom Hinge)		Appelez-nous	-
6	M0274014		Washer K		Appelez-nous	-
6	M0274013		Washer K		Appelez-nous	-
7	D7250103		Hinge		Appelez-nous	-
8	M0246159		Screw		Appelez-nous	-
9	D7092602		D7092602q		Appelez-nous	-
10	D7025102		Retainer Gasket		Appelez-nous	-
11	D7025101		Retainer		Appelez-nous	-
12	A3139801		Stop Door		Appelez-nous	-
13	D7181003		Inner Dr Panel Ref		Appelez-nous	-
14	A3133001		Tap Strip-ladder		Appelez-nous	-
15	M0213517		Screw K		Appelez-nous	-
16	C3623101		Ladder		Appelez-nous	-
17	B5631704		Support White K		Appelez-nous	-
17	B5631703		Support White K		Appelez-nous	-
18	D3976715		Package Retainer		Appelez-nous	-
18	A0066102		Retainer Assy		Appelez-nous	-
19	A3056205		Rod A		Appelez-nous	-
20	A3057004		Spacer K		Appelez-nous	-
20	A3057003		Spacer Butter Door		Appelez-nous	-
21	A3065201		Spring A/k		Appelez-nous	-
21	A3067001		Spring K		Appelez-nous	-
22	C8720401		Door, Butter		Appelez-nous	-
23	D3799801		Butter Tray		Appelez-nous	-
24	A3059002		Rubber Bumper		Appelez-nous	-
25	B0530004		Support K		Appelez-nous	-
26	B5632001		Retainer		Appelez-nous	-
27	D7025701		Egg		Appelez-nous	-
28	C8720301		Utility Door		Appelez-nous	-
29	A3061903		Shim		Appelez-nous	-
29	A3061902		Shim		Appelez-nous	-
29	A3061901		Shim		Appelez-nous	-
