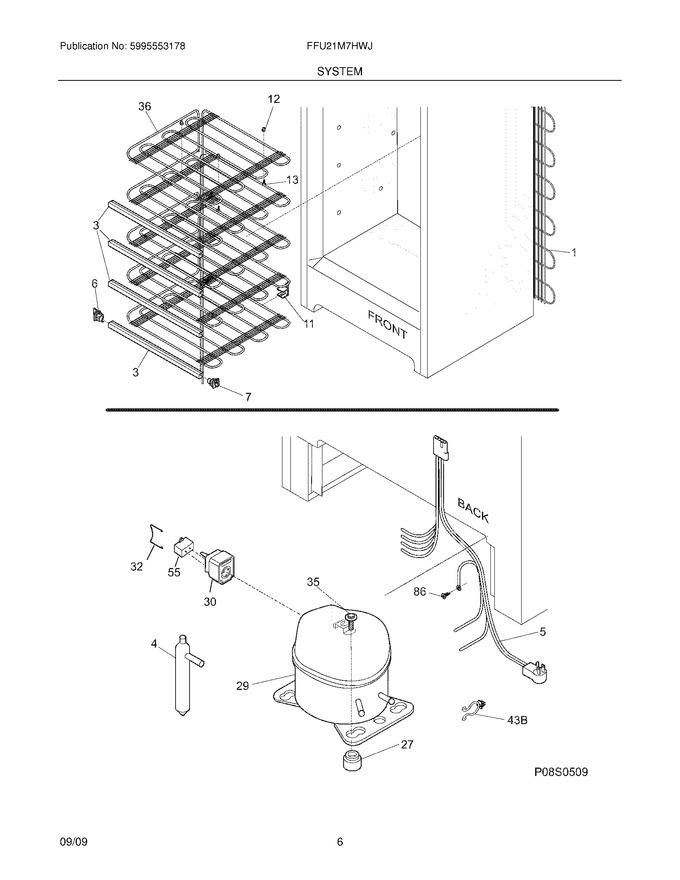

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover
03 - Door
05 - Cabinet
07 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304509723 | Trim-shelf,evaporator (Replaces: 216847806) |
|
Immediately | $ 35.34 | ||||
| 4 | 216987500 | Drier-filter |
|
- | |||||
| 6 | 297001600 | Support-shelf,front Lh |
|
$ 20.09 | |||||
| 7 | 297001500 | Support-shelf,front Rh |
|
$ 20.09 | |||||
| 11 | 216474600 | Support-rear Shelf |
|
$ 16.55 | |||||
| 12 | 216225700 | Grommet-spacer |
|
$ 7.77 | |||||
| 13 | 216138901 | Screw,hex Sems ,8-18ab X 1.00 ,evap |
|
- | |||||
| 27 | 297293300 | Grommet,compressor |
|
- | |||||
| 30 | 216954227 | Controller,compressor |
|
$ 54.60 | |||||
| 32 | 216649200 | Clip,controller |
|
$ 6.30 | |||||
| 35 | 297177200 | Bolt,compressor |
|
- | |||||
| 55 | 297286812 | Capacitor,run ,12 Mf (Replaces: 216985002) |
|
Immediately | $ 13.09 | ||||
| 86 | 216036601 | Screw,rwhd ,8-32a X 0.500 ,gx-ca |
|
$ 15.17 | |||||
| 43B | 297315800 | Clip,wire |
|
$ 11.25 | |||||
| F1 | 5300083897 | Condenser |
|
$ 598.19 | |||||
| F29 | 5304478809 | Compressor (Replaces: 297270422) |
|
Immediately | $ 649.95 | ||||
| F36 | 5304506302 | Evaporator,tubing Assy ,white (Replaces: 297286000) |
|
$ 360.66 | |||||
| F5 | 297171900 | Harness-main,w/light |
|
$ 73.71 | |||||
| NI | 216327800 | Clip,wire |
|
- | |||||
| NI | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 14.96 | ||||
| NI | 216502500 | Sleeve,suction Line |
|
$ 12.05 | |||||
| NI | 241500305 | Screw,no.8 ,18x.63 ,self Pierce (Replaces: 297174300) |
|
$ 3.37 | |||||
| NINo. | 297366805 | Cord-power (Replaces: 297169904) |
|
$ 76.31 |
