01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Optional Parts (not Included)

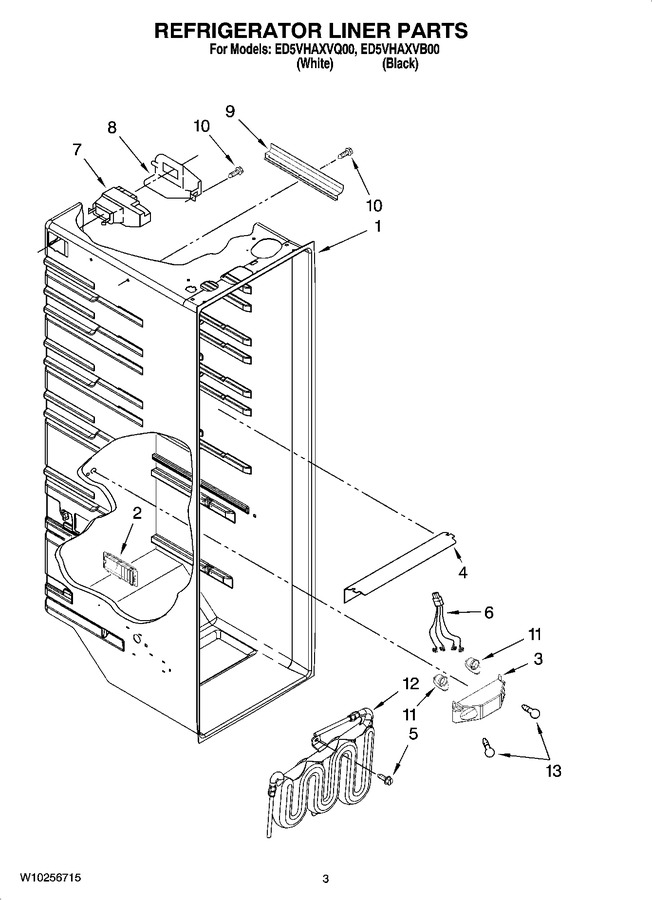

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	2257741		Louver		Appelez-nous	-
3	2256035		Bracket, Dual Crisper Light				$ 62.54
4	2209769		Light Lens		Appelez-nous	-
5	488280		Screw		Appelez-nous	-
6	2311637		Wire Harness, Crisper Light				$ 147.24
7	2209754		Air Diffuser Assembly		Appelez-nous	-
8	2152019		Air Diffuser Cover				$ 90.33
9	2150331		Cover, Conduit				$ 25.62
10	W10759522		Screw   (Replaces: 486298)				$ 8.24
11	4387478		Socket   (Replaces: 2162085)			Immediately	$ 115.67
12	WPW10276792		Reservoir   (Replaces: W10204356)				$ 144.45
13	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 18.67
