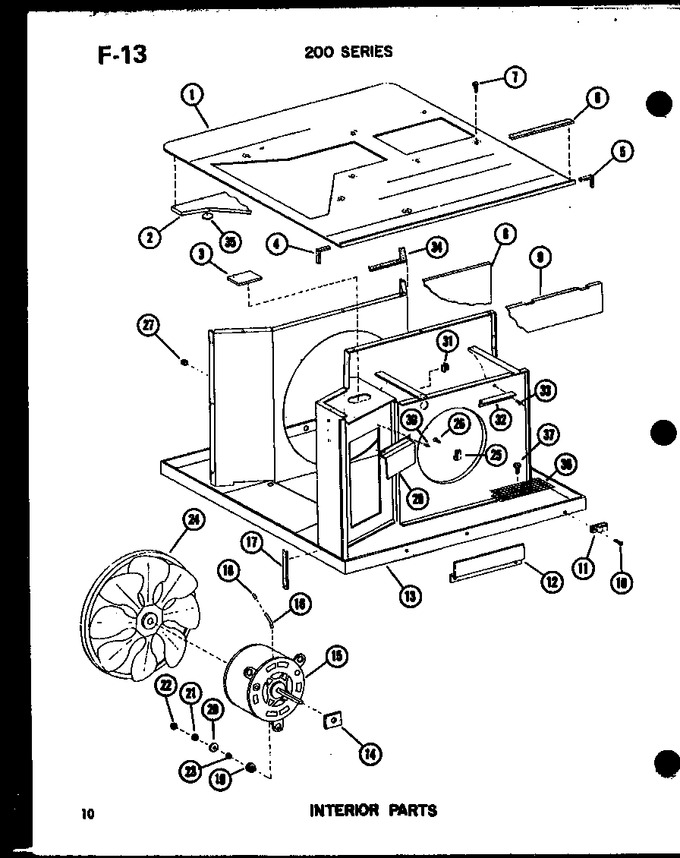

07 - Interior Parts


08 - Page 9


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D5538001		Top Cover		Appelez-nous	-
2	B1106301		Insulation		Appelez-nous	-
3	B5107615		Gasket		Appelez-nous	-
4	B1106202		Gasket		Appelez-nous	-
5	B1106201		Gasket		Appelez-nous	-
6	B1106204		Gasket		Appelez-nous	-
7	R9800670		Screw   (Replaces: M0211343)				$ 10.58
8	C5977901		Insulation, Partition Panel		Appelez-nous	-
9	B1263501		Insulation		Appelez-nous	-
10	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
11	M0102101		Clamp		Appelez-nous	-
12	A4591402		Handle		Appelez-nous	-
13	D5444708		Base Pan Weldment		Appelez-nous	-
14	B5107608		Gasket		Appelez-nous	-
15	C5803104		Motor		Appelez-nous	-
16	A4597701		Oil Tube		Appelez-nous	-
17	B1106203		Gasket		Appelez-nous	-
18	A3032601		Rivet Plastic		Appelez-nous	-
19	M0500501		Grommet		Appelez-nous	-
20	M0270529		Washer		Appelez-nous	-
21	M0270519		Washer		Appelez-nous	-
22	M0282009		Nut				$ 14.07
23	M0270504		Washer		Appelez-nous	-
24	D5353102		Fan Blade		Appelez-nous	-
25	M0102306		Clamp		Appelez-nous	-
25	M0102305		Clamp, Tube		Appelez-nous	-
26	R9800670		Screw   (Replaces: M0211343)				$ 10.58
27	A3023301		Grommet		Appelez-nous	-
31	M0110503		Clip		Appelez-nous	-
32	B5106203		Plate Reflector		Appelez-nous	-
33	A4539601		Pop Rivet		Appelez-nous	-
34	A3030303		Gasket (per Foot)		Appelez-nous	-
35	A3316101		Washer-insulation		Appelez-nous	-
36	C5992401		Screen Guard		Appelez-nous	-
