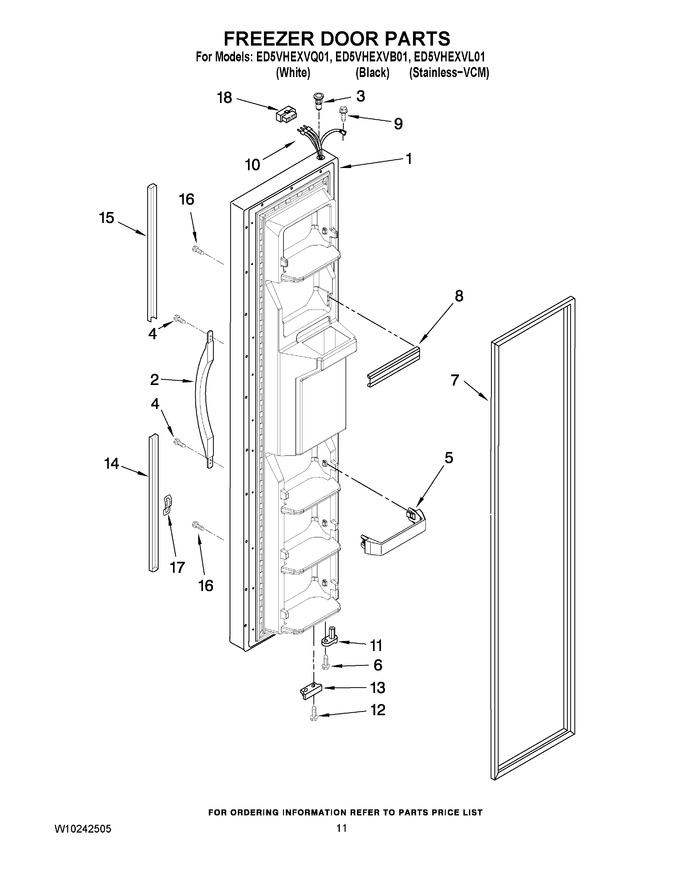

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10153768 | Freezer Door (includes Item 8 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10153769 | Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless-vcm) |
|
- | |||||
| 1 | W10153767 | Freezer Door (includes Item 8 And Dispenser Front Parts) (white) |
|
- | |||||
| 2 | 2304413W | Handle (white) |
|
- | |||||
| 2 | 2304413B | Handle (black) |
|
- | |||||
| 3 | WP2182181 | Thimble-top (Replaces: 2182181) |
|
$ 7.76 | |||||
| 4 | WP489491 | Screw (Replaces: 489491) |
|
$ 6.95 | |||||
| 5 | WP2309718 | Trivet (4) (Replaces: 2309718) |
|
$ 58.56 | |||||
| 6 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 7 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2309532) |
|
$ 310.19 | |||||
| 7 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2309533) |
|
$ 316.66 | |||||
| 8 | WPW10307490 | Trim, Door Shelf (Replaces: W10307490) |
|
Immediately | $ 23.11 | ||||
| 9 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.88 | |||||
| 10 | 2311641 | Wire Harness |
|
- | |||||
| 11 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 6.39 | ||||
| 12 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 13 | WP2206629B | Bracket, Door Stop (chrome) (Replaces: 2206629) |
|
$ 40.03 | |||||
| 13 | WP2206629B | Bracket, Door Stop (black) (Replaces: 2206629B) |
|
$ 40.03 | |||||
| 14 | 2194705B | Extension, Bottom (black) |
|
$ 47.36 | |||||
| 14 | 2194705W | Extension, Bottom (white) |
|
$ 48.88 | |||||
| 15 | 2194707W | Extension, Top (white) |
|
$ 45.63 | |||||
| 15 | 2194707B | Extension, Top (black) |
|
- | |||||
| 16 | WP3400852 | Screw (Replaces: 3400852) |
|
$ 9.84 | |||||
| 17 | WP2195327 | Clip (Replaces: 2195327) |
|
$ 7.40 | |||||
| 18 | WP2154473 | Connector (Replaces: 2154473) |
|
$ 23.65 |
