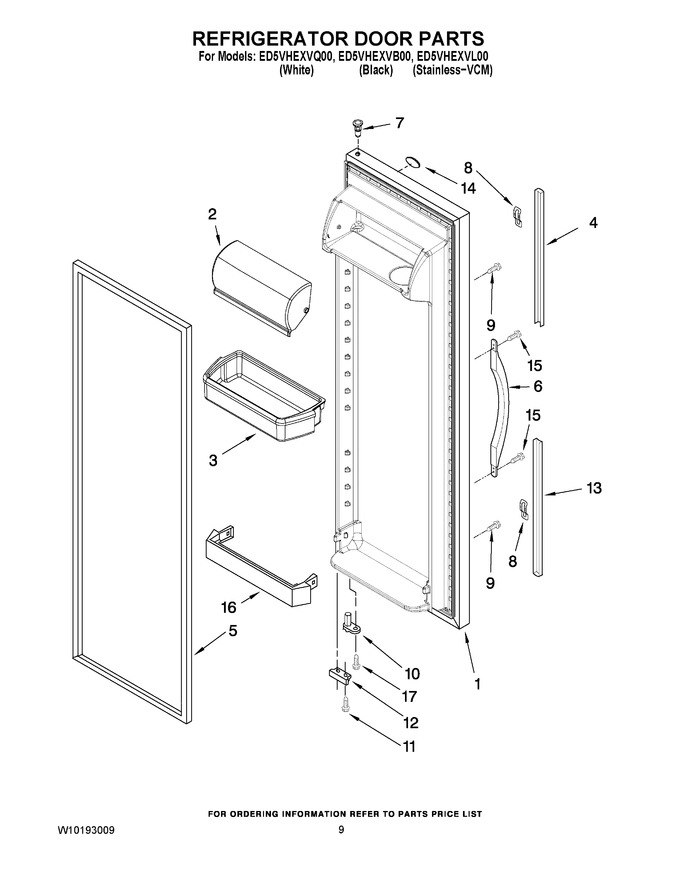

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts


13 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2309921B		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	2309921L		Stainless-vcm		Appelez-nous	-
1	2309921W		Refrigerator Door (includes Item 5) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
3	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
4	2194973B		Extension, Top (black)		Appelez-nous	-
4	2194973W		Extension, Top (white)				$ 5.65
5	2159083		Door Gasket, Magnetic (black)   (Replaces: 2309529)				$ 251.49
5	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309528)			Immediately	$ 317.14
6	2186649W		Handle (white)				$ 70.49
6	2186649B		Handle (black)				$ 72.96
7	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
8	WP2195327		Clip   (Replaces: 2195327)				$ 7.40
9	WP3400852		Screw   (Replaces: 3400852)				$ 9.84
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 10.87
12	WP2206629B		Bracket, Door Stop (chrome)   (Replaces: 2206629)				$ 40.03
12	WP2206629B		Bracket, Door Stop (black)   (Replaces: 2206629B)				$ 40.03
13	2194969W		Extension, Bottom (white)				$ 5.51
13	WP2194969B		Extension, Bottom (black)   (Replaces: 2194969B)				$ 116.40
14	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 88.74
15	WP489491		Screw (4)   (Replaces: 489491)				$ 6.95
16	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
17	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
