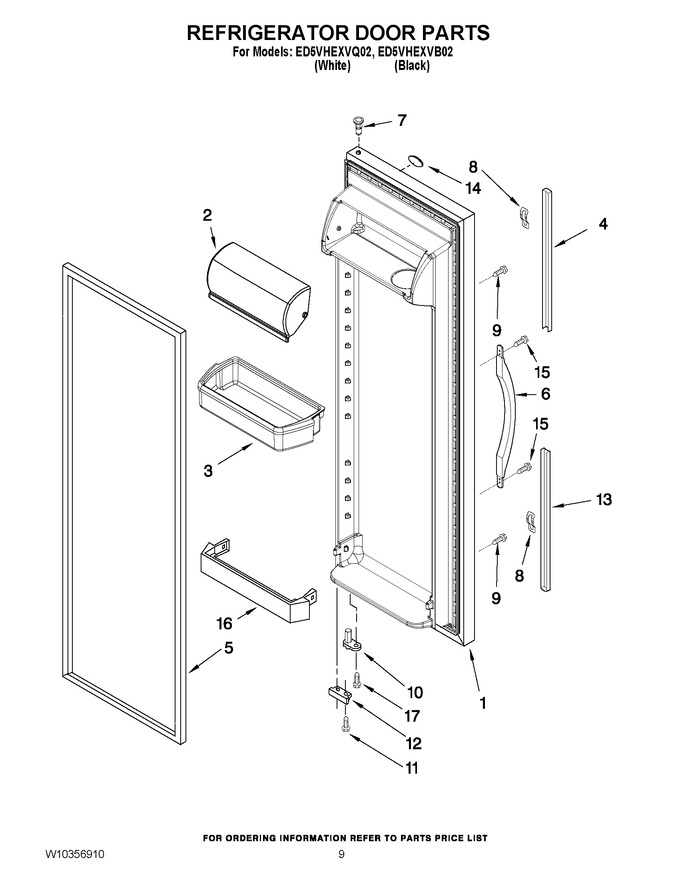

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2206682B		Refrigerator Door (includes Item 5) (black)		Appelez-nous	-
1	2206682W		Refrigerator Door (includes Item 5) (white)		Appelez-nous	-
2	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 89.42
3	WP2187172		Door Bin (3)   (Replaces: 2187172)			Immediately	$ 45.09
4	2194707B		Extension, Top (black)		Appelez-nous	-
4	2194707W		Extension, Top (white)				$ 45.63
5	2159083		Door Gasket, Magnetic (black)   (Replaces: 2221313)				$ 251.49
5	2159075		Door Gasket, Magnetic (mist Beige)   (Replaces: 2221302)			Immediately	$ 333.00
6	W10285540		Handle (black)				$ 71.85
6	W10285542		Handle (white)				$ 71.46
7	WP2182181		Thimble-top   (Replaces: 2308091)				$ 8.15
8	WP2195327		Clip   (Replaces: 2195327)				$ 7.77
9	WP3400852		Screw   (Replaces: 3400852)				$ 10.33
10	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
11	WP489483		Screw   (Replaces: 489420)				$ 11.41
12	W10219802		Bracket, Door Stop (black)				$ 5.62
12	W10219801		Bracket, Door Stop (chrome)				$ 5.27
13	2194705B		Extension, Bottom (black)				$ 47.36
13	2194705W		Extension, Bottom (white)				$ 48.88
14	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
15	WP489491		Screw (4)   (Replaces: 489491)				$ 7.30
16	WP2156022		Trivet, Shelf   (Replaces: 2156022)			Immediately	$ 72.80
17	WP3400012		Screw   (Replaces: 3400012)				$ 8.26
