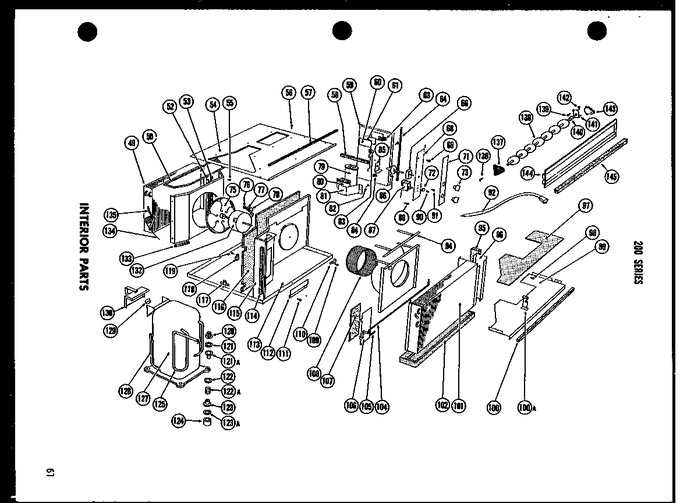

01 - Exterior Parts
02 - Interior Parts
03 - Interior Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 49 | D5351303 | Condenser Coil Assembly |
|
- | |||||
| 50 | A3030332 | Gasket-per Ft |
|
- | |||||
| 52 | B5117101 | Screen |
|
- | |||||
| 53 | A3030307 | Gasket |
|
- | |||||
| 54 | B1111701 | Top Cover, Weldment |
|
- | |||||
| 55 | W11233072 | Use M0214931 (Replaces: M0211531) |
|
Immediately | $ 14.72 | ||||
| 56 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 57 | B1106204 | Gasket |
|
- | |||||
| 58 | A3030332 | Gasket-per Ft |
|
- | |||||
| 59 | D5349303 | Panel, Access |
|
- | |||||
| 60 | B5110801 | Damper Door |
|
- | |||||
| 61 | B5107602 | Gasket |
|
- | |||||
| 63 | B4778002 | Spring |
|
- | |||||
| 64 | B1106203 | Gasket |
|
- | |||||
| 66 | B5171902 | Switch |
|
- | |||||
| 68 | C5880101 | Mtg Bracket-control |
|
- | |||||
| 69 | M0218116 | Screw |
|
- | |||||
| 71 | C5882301 | Escutcheon Assy |
|
- | |||||
| 72 | A3073601 | Bushing |
|
- | |||||
| 73 | D7009804 | Knob |
|
- | |||||
| 75 | D5353102 | Fan Blade |
|
- | |||||
| 76 | M0282009 | Nut |
|
$ 14.07 | |||||
| 77 | M0270519 | Washer |
|
- | |||||
| 77 | M0270504 | Washer |
|
- | |||||
| 77 | M0270529 | Washer |
|
- | |||||
| 78 | M0500501 | Grommet |
|
- | |||||
| 79 | C5825019 | Capacitor, Comp. Run, 30 Mfd, |
|
- | |||||
| 80 | C5825010 | Capacitor, Fan Motor Run, 5 M. |
|
- | |||||
| 81 | B5115801 | Strap |
|
- | |||||
| 82 | M0211545 | Screw |
|
- | |||||
| 83 | A4598401 | Clamp |
|
- | |||||
| 84 | M0110503 | Clip |
|
- | |||||
| 85 | B5109303 | Damper Control |
|
- | |||||
| 86 | C5237901 | Cam |
|
- | |||||
| 87 | B4170103 | Thermostat |
|
- | |||||
| 89 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 90 | YM0115901 | Clip, Knob Mounting |
|
- | |||||
| 91 | M0232012 | Screw |
|
- | |||||
| 92 | C5283101 | Cord Set, Unit Power |
|
- | |||||
| 94 | A3030332 | Gasket-per Ft |
|
- | |||||
| 96 | B5107002 | Barrier |
|
- | |||||
| 97 | B1107101 | Insulation |
|
- | |||||
| 98 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 99 | D5466401 | Evaporator Cover |
|
- | |||||
| 100 | B5170401 | Spacer,plenum |
|
- | |||||
| 101 | D5397001 | Evaporator Coil Assembly |
|
- | |||||
| 102 | D5350101 | Filler Block |
|
- | |||||
| 104 | B5106401 | Rod |
|
- | |||||
| 105 | M0110901 | Clip |
|
- | |||||
| 106 | C5236701 | Damper Door |
|
- | |||||
| 107 | B5107601 | Gasket |
|
- | |||||
| 108 | D5352101 | Blower Wheel |
|
- | |||||
| 109 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 110 | M0102101 | Clamp |
|
- | |||||
| 111 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 112 | A4591402 | Handle |
|
- | |||||
| 113 | D5412609 | Base Pan Wldmt |
|
- | |||||
| 114 | B1106203 | Gasket |
|
- | |||||
| 116 | C5239301 | Insulation, Partition Panel, O |
|
- | |||||
| 117 | A4572001 | Clamp |
|
- | |||||
| 117 | A3030315 | Gasket-per Ft |
|
- | |||||
| 118 | M0102306 | Clamp |
|
- | |||||
| 119 | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| 120 | M0283610 | Nut |
|
- | |||||
| 121 | M0274008 | Washer,fibre |
|
- | |||||
| 121 | A4013501 | Grommet |
|
- | |||||
| 122 | M0271501 | Washer |
|
- | |||||
| 122 | A4658702 | Spring-comp Mtg |
|
- | |||||
| 123 | A4013601 | Grommet |
|
- | |||||
| 125 | D5480301 | Tube, Suction, Valve To Compre |
|
- | |||||
| 125 | C5886701 | Tube-evap To Valve |
|
- | |||||
| 125 | C5885701 | Tube-discharge |
|
- | |||||
| 125 | B1112701 | Tube-preform |
|
- | |||||
| 127 | D5320106 | Compressor, Srb4-0200-pfv, 230 |
|
- | |||||
| 128 | C5886401 | Tube-discharge |
|
- | |||||
| 128 | B1112801 | Tube-muffler-desup |
|
- | |||||
| 129 | D4976658 | Overload |
|
- | |||||
| 130 | C5864401 | Terminal Cover |
|
- | |||||
| 132 | C5262703 | Fan Motor, West, 321p273, 208/ |
|
- | |||||
| 134 | C5244901 | Capillary Tube |
|
- | |||||
| 135 | B5159301 | Strainer |
|
- | |||||
| 136 | M0211530 | Screw |
|
- | |||||
| 137 | A4653401 | Bearing |
|
- | |||||
| 138 | C5827501 | Deflector |
|
- | |||||
| 139 | WP90767 | Screw, Sm (Replaces: M0211016) |
|
Immediately | $ 8.25 | ||||
| 140 | A4653501 | Extension |
|
- | |||||
| 141 | A4653301 | Lever |
|
- | |||||
| 142 | WP489464 | Screw K (Replaces: M0211317) |
|
Immediately | $ 8.38 | ||||
| 143 | M0370901 | Motor |
|
- | |||||
| 144 | C5881101 | Collar-outlet |
|
- | |||||
| 145 | A3030303 | Gasket (per Foot) |
|
- | |||||
| NI | B5128502 | Switch |
|
- | |||||
| NI | A3023301 | Grommet |
|
- | |||||
| NI | B5107608 | Gasket |
|
- | |||||
| NI | M0211545 | Screw |
|
- | |||||
| NI | B5127304 | Button-on |
|
- | |||||
| NI | M0275118 | Scotch Mount, Outlet Collar To |
|
- | |||||
| NI | A3030332 | Gasket-per Ft |
|
- | |||||
| NI | A4689601 | Spring-retainer |
|
- | |||||
| NI | M0255015 | Sems Fastner |
|
- | |||||
| NI | B5105301 | Thermostat |
|
- | |||||
| NI | B5128102 | Wiring Harness |
|
- | |||||
| NI | M0775101 | Spring |
|
- | |||||
| NI | B1107201 | Insulation, Top Cover |
|
- | |||||
| NI | M0286201 | Speed Nut |
|
- | |||||
| NI | C5237201 | Heater |
|
- | |||||
| NI | B4148403 | Thermostat,defrost, Heat Pump |
|
- | |||||
| NI | B5108901 | Assembly, Solenoid Coil, Ranco |
|
- | |||||
| NI | A4662301 | Insulator |
|
- | |||||
| NI | C5275702 | Wiring Harness |
|
- | |||||
| NI | A3045502 | Grommet |
|
- | |||||
| NI | B5109001 | Spring |
|
- | |||||
| NI | A4587801 | Bale Strap |
|
- | |||||
| NI | M0212144 | Screw |
|
- | |||||
| NI | B5126701 | Spring |
|
- | |||||
| NI | B4765601 | Reversing Valve |
|
- | |||||
| NI | Y052721 | Nut (Replaces: M0281006) |
|
$ 24.95 | |||||
| NI | M0380201 | Thermostat |
|
- | |||||
| NI | M0275520 | Thermal Mastic K |
|
- | |||||
| NI | B5106201 | Plate Reflector |
|
- | |||||
| NI | A3030307 | Gasket |
|
- | |||||
| NI | C5885802 | Muffler |
|
- | |||||
| NI | B5127303 | Button-off |
|
- | |||||
| NI | M0340101 | Switch |
|
- | |||||
| NI | A4600001 | Shield,filler Block |
|
- | |||||
| NI | M0229004 | Screw |
|
- | |||||
| NI | C5886602 | Tube-desup |
|
- | |||||
| NI | A4685101 | Clamp |
|
- | |||||
| NI | A3032601 | Rivet Plastic |
|
- | |||||
| NI | A4597701 | Oil Tube |
|
- | |||||
| NI | WP488130 | Nut (Replaces: M0282007) |
|
$ 7.32 | |||||
| NI | M0289701 | Lock Nut |
|
- | |||||
| NI | M0206116 | Screw |
|
- | |||||
| NI | B1114701 | Gasket-5.875`` |
|
- | |||||
| NI | B5107606 | Gasket |
|
- | |||||
| NI | B1106102 | Insulation |
|
- | |||||
| NI | M0287706 | Nut |
|
- | |||||
| NI | M0289601 | Palnut |
|
- | |||||
| NI | D5480101 | Tube-sub Cooler |
|
- | |||||
| NI | M0288302 | Speed Nut |
|
- | |||||
| NI | B1106202 | Gasket |
|
- | |||||
| NI | B5134105 | Wiring Harness, Solenoid |
|
- | |||||
| NI | A4598501 | Screen |
|
- | |||||
| NI | B5131902 | Retainer-filter |
|
- | |||||
| NI | B1108901 | Retainer |
|
- | |||||
| NI | M0110503 | Clip |
|
- | |||||
| NI | M0103501 | Clamp |
|
- | |||||
| NI | M0275015 | Tape Per Foot |
|
- | |||||
| NI | B1106201 | Gasket |
|
- | |||||
| NI | A4663604 | Spring |
|
- | |||||
| NI | A4599801 | Gasket, Heater Wiring Thru Eva |
|
- | |||||
| NI | R9800670 | Kit, Screw (Replaces: M0211030) |
|
$ 10.58 | |||||
| NI | B1106601 | Button |
|
- | |||||
| NI | M0211530 | Screw |
|
- | |||||
| NI | A4695402 | Clamp-muffler |
|
- | |||||
| NI | A3045501 | Grommet |
|
- |
