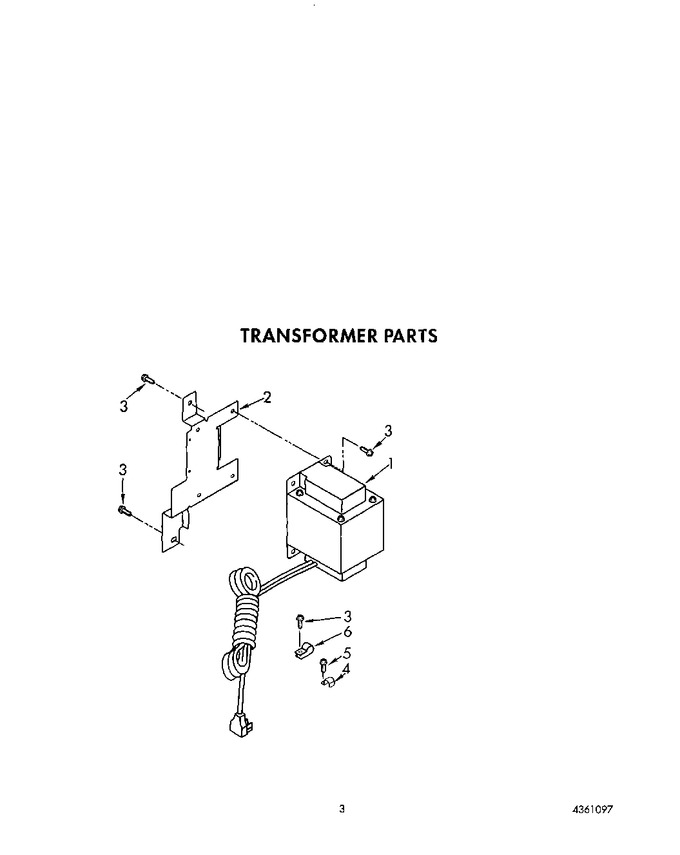

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1129494		Transformer		Appelez-nous	-
2	1129328		Bracket, Transformer		Appelez-nous	-
3	489364		Screw		Appelez-nous	-
4	1129503		Clamp, Cord		Appelez-nous	-
5	WP489478		Screw   (Replaces: 489242)				$ 7.75
6	836472		Clamp, Tube		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
