SELECT A DIAGRAM

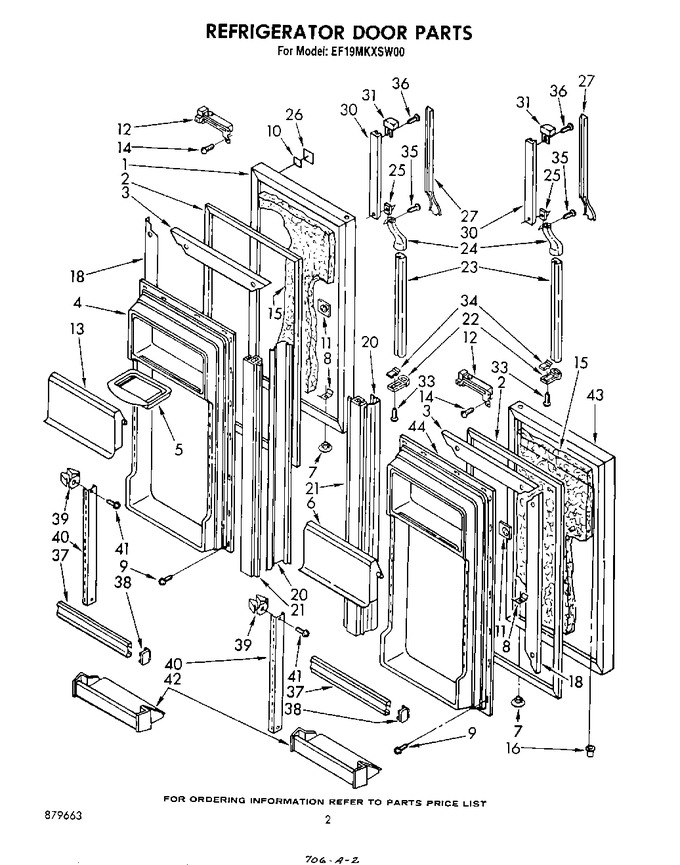

02 - Refrigerator Door


03 - Freezer Door


04 - Cabinet


05 - Liner


06 - Interior


07 - Breaker And Control


08 - Unit , Miscellaneous


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1110324		Door, Refrigerator (r.h.) (also Order Item 15) (toast)		Appelez-nous	-
1	1110325		Door, Refrigerator (r.h.) (also Order Item 15) (platinum)		Appelez-nous	-
1	1110321		Door, Refrigerator (r.h.) (also Order Item 15) (white)		Appelez-nous	-
1	1110322		Door, Refrigerator (r.h.) (also Order Item 15) (golden Harvest)		Appelez-nous	-
1	1110323		Door, Refrigerator (r.h.) (also Order Item 15) (almond)		Appelez-nous	-
2	992582		Gasket, Refrigerator Door (2)		Appelez-nous	-
3	992580		Retainer Gasket, Top & Bottom (2)		Appelez-nous	-
4	1101508		Interior Door Panel (r.h.)		Appelez-nous	-
5	520747		Tray, Butter		Appelez-nous	-
6	1111953		Door, Utility		Appelez-nous	-
7	989197		Plug, Hole (2) (almond)		Appelez-nous	-
7	989879		Plug, Hole (2) (golden Wheat)		Appelez-nous	-
7	1100196		Hole Plug (2) (toast)		Appelez-nous	-
7	1100197		Hole Plug (2) (platinum)		Appelez-nous	-
7	534927		Plug, Hole (2) (white)		Appelez-nous	-
8	945012		Plate, Tap		Appelez-nous	-
9	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
10	991259		Tape Strip		Appelez-nous	-
11	941242		Screw Anchor		Appelez-nous	-
12	991877		Door Closer (2)		Appelez-nous	-
13	1111950		Door, Butter		Appelez-nous	-
14	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 487909)			Immediately	$ 8.28
15	876029		Kit, Foam Slab (required When Replacing Exterior Door Panel)		Appelez-nous	-
16	509929		Cap, Hinge Sleeve		Appelez-nous	-
18	986008		Retainer, Gasket (side)		Appelez-nous	-
20	992581		Retainer, Gasket Mullion (2)		Appelez-nous	-
21	1101510		Door Gasket, Mullion (2)		Appelez-nous	-
22	944157		Cap, Handle		Appelez-nous	-
23	1109048		Handle, Center		Appelez-nous	-
23	1109057		Handle (center) (for Platinum Model Only)		Appelez-nous	-
24	935103		Cap, Handle (center)		Appelez-nous	-
25	935075		Shim, Handle		Appelez-nous	-
26	945116		Insert, Nameplate		Appelez-nous	-
27	1111951		Insert, Handle		Appelez-nous	-
27	1111960		Insert, Handle (black) (for Platinum Model Only)		Appelez-nous	-
30	941993		Retainer, Insert		Appelez-nous	-
31	941259		End Cap, Insert Retainer		Appelez-nous	-
33	WP488920		Screw, 8 X 5/8 (2)   (Replaces: 488920)				$ 7.98
33	488923		Screw (repair)		Appelez-nous	-
34	943188		Spacer, Handle				$ 7.80
35	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
36	489075		Screw, 10-32 X 5/8		Appelez-nous	-
37	1109043		Trim, Door Shelf		Appelez-nous	-
38	988709		Retainer, Door Trim (2)		Appelez-nous	-
39	537095		Clip, Expansion (4)		Appelez-nous	-
40	839430		Ladder, Door Shelf (2)		Appelez-nous	-
41	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488320)			Immediately	$ 8.28
42	1109045		Door Shelf, Cantilever (2)		Appelez-nous	-
43	1110333		Door, Refrigerator (l.h.) (also Order Item 15) (platinum)		Appelez-nous	-
43	1110330		Door, Refrigerator (l.h.) (also Order Item 15) (golden Harvest)		Appelez-nous	-
43	1110329		Door, Refrigerator (l.h.) (also Order Item 15) (white)		Appelez-nous	-
43	1110332		Door, Refrigerator (l.h.) (also Order Item 15) (toast)		Appelez-nous	-
43	1110331		Door, Refrigerator (l.h.) (also Order Item 15) (almond)		Appelez-nous	-
44	1101512		Interior Door Panel (l.h.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
