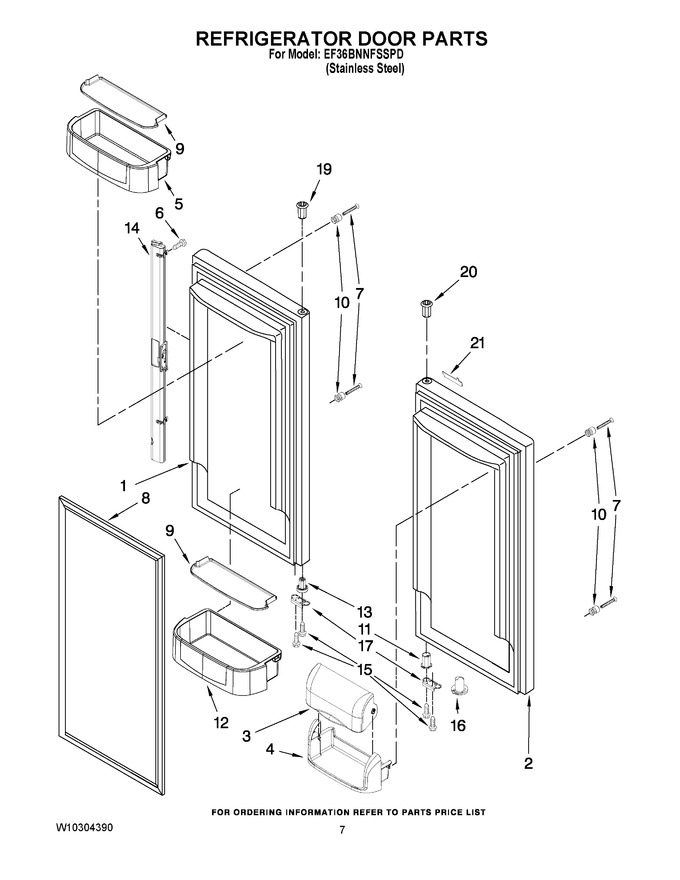

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	13024069SQ		Door, Left (stainless)		Appelez-nous	-
2	13024070SQ		Door, Right (stainless)		Appelez-nous	-
3	WP67003637		Door, Dairy   (Replaces: 12804701SP)			Immediately	$ 82.67
4	WP67001279		Tray, Dairy   (Replaces: 12369502SP)			Immediately	$ 88.01
5	WPW10371193		Bin, Shelf (3) (medium)   (Replaces: 12849104SP)			Immediately	$ 74.80
6	W11311945		Screw   (Replaces: 12990204)				$ 14.72
7	WPW10133608		Screw   (Replaces: 12991202)				$ 10.28
8	W10830162		Gasket, Door (2) (apollo Grey)   (Replaces: W10179332)			Immediately	$ 212.57
9	12567311SP		Gripper (medium Bucket)		Appelez-nous	-
9	12567313SP		Gripper (gallon Bucket)		Appelez-nous	-
10	12945201		Mount, Handle				$ 35.20
11	12028601AP		Bushing, Door (bottom Right)				$ 5.71
12	WPW10289497		Bin, Shelf (2) (gallon)   (Replaces: 12699206SP)			Immediately	$ 81.09
13	12699301AP		Bushing, Door (bottom Left)				$ 13.44
14	WP12722803AP		Mullion, Door (apollo Grey)   (Replaces: 12722803APK)			Immediately	$ 177.93
15	WP98165		Screw   (Replaces: 12990504)				$ 8.57
16	WP12028505AP		Closure, Door (apollo Grey)   (Replaces: 12028505AP)			Immediately	$ 61.46
17	W11401472		Stop, Door (apollo Grey)   (Replaces: 10447114)			Immediately	$ 23.56
19	12395501AP		Bushing, Door Upper Left (apollo Grey)				$ 12.05
20	10961006AP		Bushing, Door (upper Right) (apollo Grey)				$ 9.65
21	DE81-07552A		Nameplate   (Replaces: 12989001)				$ 141.98
