SELECT A DIAGRAM

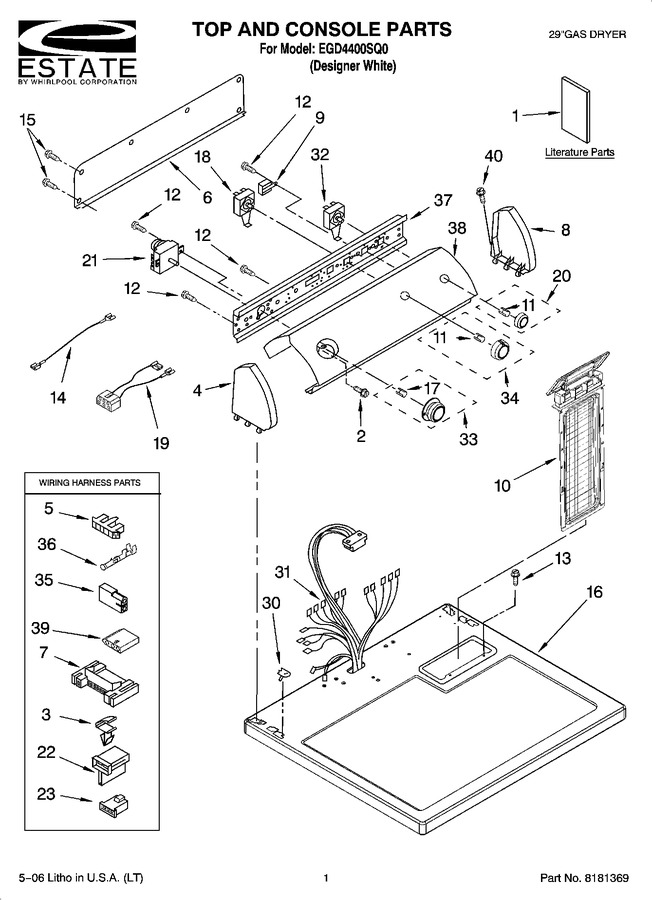

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts
04 - 8318272 Burner Assembly, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10043000 | Sheet, Cycle Feature |
|
- | |||||
| 1 | 677818 | Manual, Do-it- Yourself Repair (dryer) |
|
- | |||||
| 1 | 8562589 | Installation Instructions |
|
- | |||||
| 1 | 8578193 | Use & Care Guide |
|
- | |||||
| 1 | 8528187 | Wiring Diagram |
|
- | |||||
| 2 | 3400859 | Screw, Grounding (Replaces: 8533951) |
|
$ 13.88 | |||||
| 3 | WP3394427 | Clip, Harness (Replaces: 3394427) |
|
$ 8.18 | |||||
| 4 | 279960 | Cap, End (l.h.) (Replaces: 8274437) |
|
$ 87.57 | |||||
| 5 | 3397269 | Connector, Timer |
|
$ 25.55 | |||||
| 6 | W10103406 | Panel, Rear Console (Replaces: 8274261) |
|
$ 135.31 | |||||
| 7 | 3395683 | Housing, Connector (motor) |
|
Immediately | $ 54.45 | ||||
| 8 | 279960 | Cap, End (r.h.) (Replaces: 8274434) |
|
$ 87.57 | |||||
| 9 | WP694419 | Buzzer, Mini (Replaces: 694419) |
|
$ 134.05 | |||||
| 10 | W11778253 | Screen, Lint (Replaces: 8558463) |
|
Immediately | $ 54.63 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 8.20 | ||||
| 12 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 13 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 14.76 | ||||
| 14 | 3401674 | Wire, Jumper (pts To Buzzer) |
|
$ 34.37 | |||||
| 15 | WP693995 | Screw, Hex Head (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | 8557930 | Top |
|
- | |||||
| 17 | WP688805 | Clip (Replaces: 688805) |
|
Immediately | $ 8.20 | ||||
| 18 | 3405152 | Switch, Gaurd |
|
$ 131.07 | |||||
| 19 | 8283292 | Jumper Gaurd (on/off) |
|
- | |||||
| 20 | 8538959 | Knob, Push-to-start |
|
$ 25.38 | |||||
| 21 | WP3976584 | Timer Assembly (60 Hz.) (Replaces: 3976584) |
|
$ 380.18 | |||||
| 22 | WP3403499 | Connector, 2-position Gas Valve (Replaces: 3403499) |
|
$ 6.02 | |||||
| 23 | WP3403498 | Connector, 3-position (gas Valve) (Replaces: 3403498) |
|
$ 7.30 | |||||
| 30 | WP357213 | Nut, Push-in (2) (Replaces: 357213) |
|
$ 7.76 | |||||
| 31 | 8299876 | Harness, Wiring |
|
- | |||||
| 32 | WP3977456 | Switch, Push-to-start (Replaces: 3977456) |
|
Immediately | $ 26.66 | ||||
| 33 | WP8557455 | Timer Knob Assembly (Replaces: 8538953) |
|
$ 59.61 | |||||
| 34 | WP8538957 | Knob, Control (Replaces: 8538957) |
|
$ 58.53 | |||||
| 35 | 717252 | Receptacle, 2 Way |
|
- | |||||
| 36 | WP94614 | Terminal (female) (Replaces: 94614) |
|
$ 8.05 | |||||
| 37 | 8271418 | Bracket, Control |
|
$ 57.15 | |||||
| 38 | 8578964 | Panel, Control |
|
- | |||||
| 39 | 3936144 | Connector |
|
$ 21.22 | |||||
| 40 | WP388326 | Screw, Console (Replaces: 388326) |
|
$ 9.29 |
