SELECT A DIAGRAM
01 - Section
02 - Section
New Model Search:

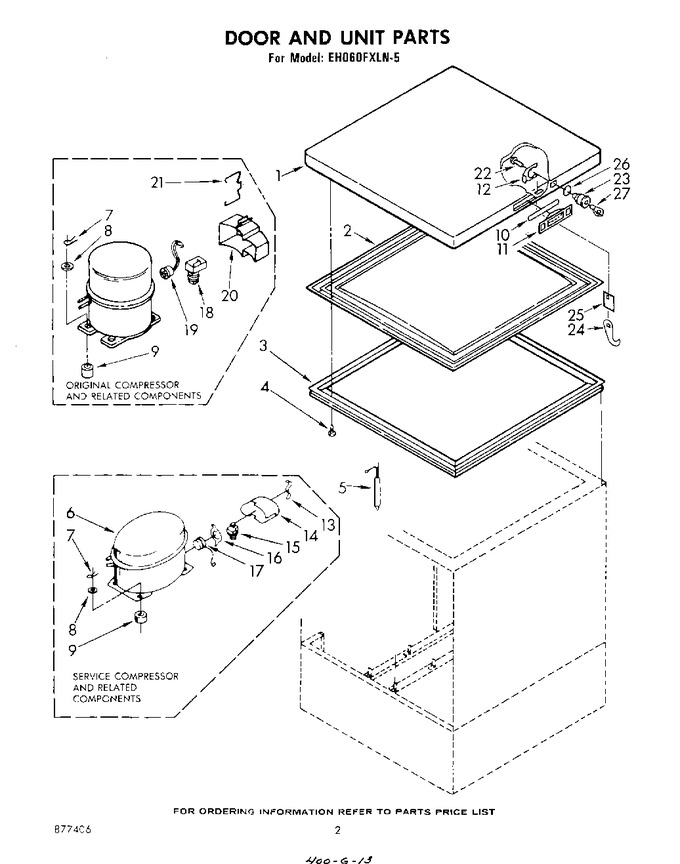

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 727338 | Door |
|
- | |||||
| 2 | 727696 | Panel |
|
- | |||||
| 3 | 727465 | Gasket |
|
- | |||||
| 4 | 596693 | Clip (36) |
|
- | |||||
| 5 | W10843121 | Drier (Replaces: 727196) |
|
Immediately | $ 57.13 | ||||
| 6 | 702216 | Compressor (service Replacement) (includes Items 13, 14, 15, 16 & 17) |
|
- | |||||
| 6 | 876765 | Installation Kit (Replaces: 482331) |
|
$ 90.65 | |||||
| 7 | 596712 | Clip (4) |
|
- | |||||
| 8 | 680975 | Washer |
|
- | |||||
| 9 | 596355 | Grommet (4) |
|
- | |||||
| 10 | 589208 | Gasket, Handle |
|
- | |||||
| 11 | 589376 | Handle, Snap-in |
|
- | |||||
| 12 | 586335 | Clip, Lock |
|
- | |||||
| 13 | 560850 | Strap, Case Relay |
|
- | |||||
| 14 | 589230 | Cover, Relay & Overload |
|
- | |||||
| 15 | 727209 | Relay |
|
- | |||||
| 16 | 560851 | Spring, Overload |
|
- | |||||
| 17 | 727210 | Overload |
|
- | |||||
| 18 | 727364 | Relay, Start (used W/ Original Compressor) |
|
- | |||||
| 19 | 727363 | Overload (used W/ Original Compressor) |
|
- | |||||
| 20 | 753597 | Cover (used W/ Original Compressor) |
|
- | |||||
| 21 | 753598 | Clamp (used W/original Compressor) |
|
- | |||||
| 22 | 680483 | Screw |
|
- | |||||
| 23 | 727243 | Lock |
|
- | |||||
| 24 | 727300 | Hook, Lock |
|
- | |||||
| 25 | 727438 | Shroud, Lock |
|
- | |||||
| 26 | 753610 | ``o`` Ring |
|
- | |||||
| 27 | 877406 | List, Parts |
|
- | |||||
| 27 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 27 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 27 | WP72107 | Paint, Touch-up (1/2oz.) (almond) (Replaces: 72107) |
|
$ 18.81 | |||||
| 27 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 27 | 978028 | Access Valve (1/2``) |
|
- | |||||
| 27 | 978029 | Access Valve (5/8``) |
|
$ 93.85 | |||||
| 27 | 978030 | Access Valve (3/4``) |
|
$ 137.25 | |||||
| 27 | 727697 | Use & Care Guide |
|
- | |||||
| 27 | 656493 | How Book |
|
- | |||||
| 27 | 727577 | Energy Guide |
|
- | |||||
| 27 | 727586 | Tech Sheet |
|
- | |||||
| 27 | WP978025 | Access Valve (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 27 | WP842177 | Key (Replaces: 842177) |
|
$ 8.51 | |||||
| 27 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 27 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 27 | 978883 | Enamel, Almond (1 Qt. Uncut) |
|
- | |||||
| 27 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 27 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 82.13 | ||||
| 27 | 588599 | Kit, Insulation (door Only) |
|
- | |||||
| 27 | WP279368 | Cement, Vinyl (1 Pt.) (Replaces: 576269) |
|
Immediately | $ 116.46 | ||||
| 27 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 116.46 | ||||
| 27 | 978026 | Access Valve (5/16``) |
|
Immediately | $ 134.49 | ||||
| 27 | SF5538 | Access Valve (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 350956 | Xenamel, Almond (13 Oz. Spray Can) |
|
$ 54.01 | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 94.14 | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 40.12 |
