Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 727338 Door Appelez-nous -
2 730074 Panel Appelez-nous -
3 730028 Gasket Appelez-nous -
4 596787 Clip (36) Appelez-nous -
5 728582 Drier Appelez-nous -
6 876765 Installation Kit   (Replaces: 482331) Special Order $ 90.65

6 876644 Compressor (service Replacement) (includes Items 13, 14, 15, 16 & 17) Appelez-nous -
7 596798 Clip (4) Appelez-nous -
8 680975 Washer Appelez-nous -
9 876811 Grommet (4)   (Replaces: 592185) Special Order $ 7.79

10 727809 Gasket, Handle Appelez-nous -
11 589376 Handle, Snap-in Appelez-nous -
12 586335 Clip, Lock Appelez-nous -
13 549342 Strap, Case Relay Appelez-nous -
14 549505 Cover, Relay & Overload Appelez-nous -
15 727308 Relay Appelez-nous -
16 549086 Spring, Overload Appelez-nous -
17 727309 Overload Appelez-nous -
18 727364 Relay, Start (used W/ Original Compressor) Appelez-nous -
19 727363 Overload (used W/ Original Compressor) Appelez-nous -
20 1105015 Cover, Terminal (used W/original Compressor) Appelez-nous -
21 938384 Clamp (used W/original Compressor) Appelez-nous -
22 680483 Screw Appelez-nous -
23 727243 Lock Appelez-nous -
24 727300 Hook, Lock Appelez-nous -
26 753610 ``o`` Ring Appelez-nous -
27 WP842177 Key   (Replaces: 842177) Special Order $ 8.51

350942 Xprimer, White (12 Oz. Spray Can)   (Replaces: 206922) Special Order $ 94.14

WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 182.65

LIT656493 How Book Appelez-nous -
LIT730048 Use & Care Guide Appelez-nous -
978030 Access Valve (3/4``) Special Order $ 137.25

978029 Access Valve (5/8``) Special Order $ 93.85

978028 Access Valve (1/2``) Appelez-nous -
SF5538 Access Valve (3/8``)   (Replaces: 978027) Special Order $ 21.64

978026 Access Valve (5/16``) In-Stock Immediately $ 134.49

WP279368 Cement, Insulation (1 Oz.)   (Replaces: 797403) In-Stock Immediately $ 116.46

WP279368 Cement, Vinyl (1 Pt.)   (Replaces: 576269) In-Stock Immediately $ 116.46

588599 Kit, Insulation (door Only) Appelez-nous -
WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 123.84

212643 Sealer, Gum (22 Pcs. 3/16`` X 7``) In-Stock Immediately $ 96.42

833938 Kit, Terminal Connector Special Order $ 8.47

978883 Enamel, Almond (1 Qt. Uncut) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

350930 Xenamel, White (12 Oz. Spray Can)   (Replaces: 799343) In-Stock Immediately $ 40.12

206925 Xleveler, Enamel (12 Oz. Spray Can) Appelez-nous -
WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 18.81

350956 Xenamel, Almond (13 Oz. Spray Can) Special Order $ 54.01

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

WP978025 Access Valve (1/4``)   (Replaces: 978025) In-Stock Immediately $ 110.51

LIT789290 List, Parts Appelez-nous -
LIT728839 Tech Sheet Appelez-nous -
LIT730075 Energy Guide Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

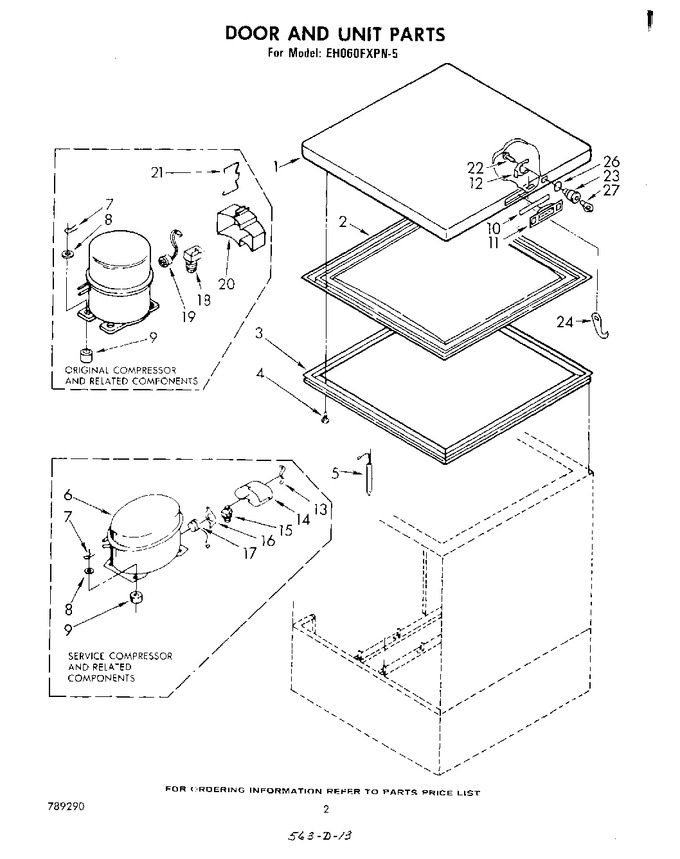

Diagram for EH060FXPN5
