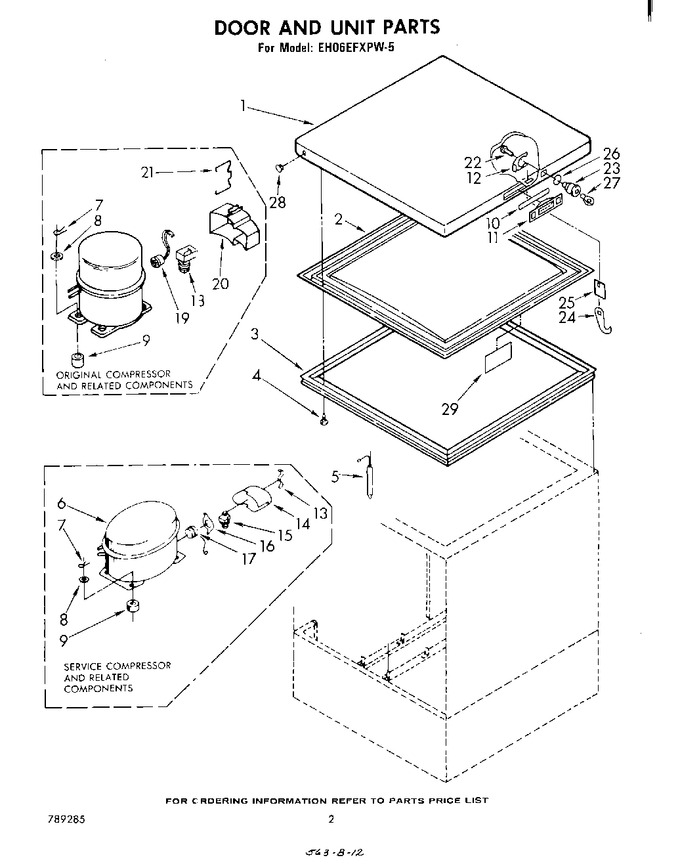

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Section
02 - Section
03 - Section
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 730124 | Door |
|
- | |||||
| 2 | 730077 | Panel |
|
- | |||||
| 3 | 730115 | Gasket |
|
- | |||||
| 4 | 596787 | Clip (36) |
|
- | |||||
| 5 | 728582 | Drier |
|
- | |||||
| 6 | 876765 | Installation Kit |
|
$ 90.65 | |||||
| 6 | 876644 | Compressor (service Replacement) (includes Items 13, 14, 15, 16 & 17) |
|
- | |||||
| 7 | 596798 | Clip (4) |
|
- | |||||
| 8 | 680975 | Washer |
|
- | |||||
| 9 | 596355 | Grommet (4) |
|
- | |||||
| 10 | 727809 | Gasket, Handle |
|
- | |||||
| 11 | 730079 | Handle, Snap-in |
|
- | |||||
| 12 | 586335 | Clip, Lock |
|
- | |||||
| 13 | 549342 | Strap, Case Relay (use W/service Compressor) |
|
- | |||||
| 14 | 549505 | Cover, Relay & Overload (use W/service Compressor) |
|
- | |||||
| 15 | 727308 | Relay (use W/service Compressor) |
|
- | |||||
| 16 | 549086 | Spring, Overload (use W/service Compressor) |
|
- | |||||
| 17 | 727309 | Overload (use W/service Compressor) |
|
- | |||||
| 18 | 727364 | Relay, Start (used W/ Original Compressor) |
|
- | |||||
| 19 | 727363 | Overload (used W/ Original Compressor) |
|
- | |||||
| 20 | 1105015 | Cover, Terminal (used W/original Compressor) |
|
- | |||||
| 21 | 938384 | Clamp (used W/original Compressor) |
|
- | |||||
| 22 | 680483 | Screw |
|
- | |||||
| 23 | 727243 | Lock |
|
- | |||||
| 24 | 727300 | Hook, Lock |
|
- | |||||
| 25 | 727438 | Shroud, Lock |
|
- | |||||
| 26 | 753610 | ``o`` Ring |
|
- | |||||
| 27 | WP842177 | Key (Replaces: 842177) |
|
$ 8.51 | |||||
| 28 | 534927 | Plug, Hole |
|
- | |||||
| 29 | 978029 | Access Valve (5/8``) |
|
$ 93.85 | |||||
| 29 | WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| 29 | WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| 29 | 72017 | Paint, Touch-up 1/2 Oz. (white) |
|
Immediately | $ 12.30 | ||||
| 29 | 730080 | Decal (estate Series) |
|
- | |||||
| 29 | 588599 | Kit, Insulation (door Only) |
|
- | |||||
| 29 | WP279368 | Cement, Vinyl (1 Pt.) (Replaces: 576269) |
|
Immediately | $ 116.46 | ||||
| 29 | WP279368 | Cement, Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 116.46 | ||||
| 29 | 978026 | Access Valve (5/16``) |
|
Immediately | $ 134.49 | ||||
| 29 | SF5538 | Access Valve (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 29 | 978028 | Access Valve (1/2``) |
|
- | |||||
| 29 | WP978025 | Access Valve (1/4``) (Replaces: 978025) |
|
Immediately | $ 110.51 | ||||
| 29 | 978030 | Access Valve (3/4``) |
|
$ 137.25 | |||||
| 29 | 799344 | Paint, Bulk (1 Qt.) (white) (uncut) |
|
$ 237.46 | |||||
| 29 | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| 29 | 212643 | Sealer, Gum (22 Pcs. 3/16`` X 7``) |
|
Immediately | $ 82.13 | ||||
| 350930 | Xenamel, White (12 Oz. Spray Can) (Replaces: 799343) |
|
Immediately | $ 40.12 | |||||
| LIT730075 | Energy Guide |
|
- | ||||||
| LIT656493 | How Book |
|
- | ||||||
| LIT730047 | Use & Care Guide |
|
- | ||||||
| 206925 | Xleveler, Enamel (12 Oz. Spray Can) |
|
- | ||||||
| 350942 | Xprimer, White (12 Oz. Spray Can) (Replaces: 206922) |
|
$ 94.14 | ||||||
| LIT789285 | List, Parts |
|
- | ||||||
| LIT728839 | Sheet, Tech |
|
- |
