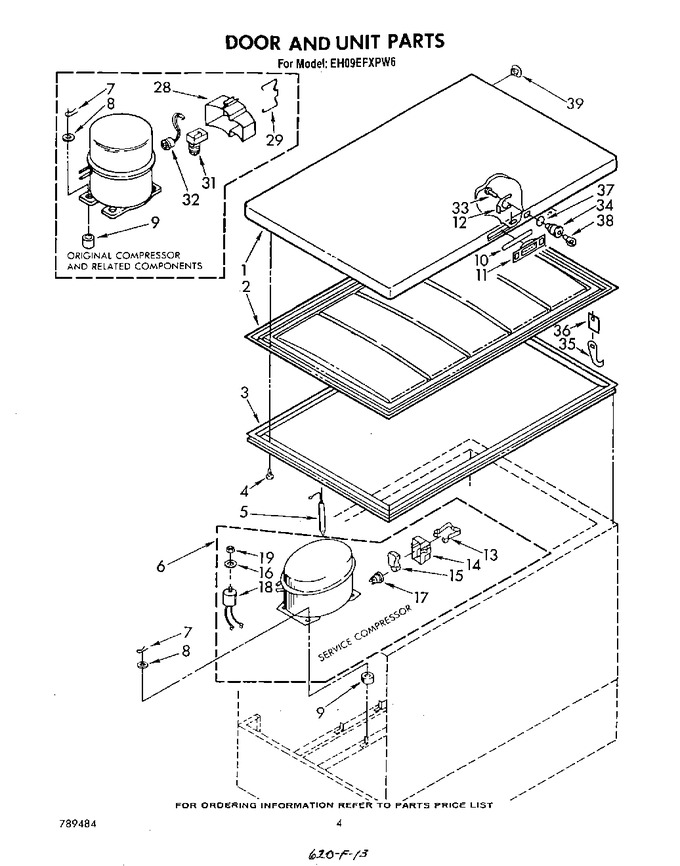

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	730204		Door		Appelez-nous	-
2	730094		Panel		Appelez-nous	-
3	730120		Gasket		Appelez-nous	-
4	596787		Clip (44)		Appelez-nous	-
5	728582		Drier		Appelez-nous	-
6	482980		Compressor (includes Items 13, 14, 15, 16 & 17)		Appelez-nous	-
7	596798		Clip (4)		Appelez-nous	-
8	680975		Washer (4)		Appelez-nous	-
9	876811		Grommet (4)   (Replaces: 592185)				$ 7.79
10	727809		Gasket, Handle		Appelez-nous	-
11	730079		Handle, Snap-in		Appelez-nous	-
12	983465		Clip, Lock		Appelez-nous	-
13	938384		Strap, Cover (used W/service Compressor)		Appelez-nous	-
14	1105015		Cover, Terminal (used On Service Compressor)		Appelez-nous	-
15	1100806		Relay (used W/service Compressor)		Appelez-nous	-
16	489143		Lockwasher (used W/service Compressor)		Appelez-nous	-
17	1100807		Overload (used W/service Compressor)		Appelez-nous	-
18	482996		Capacitor, Run (used W/ Service Compressor)		Appelez-nous	-
19	489142		Nut (used W/service Compressor)		Appelez-nous	-
28	1105015		Cover, Terminal (used W/original Compressor)		Appelez-nous	-
29	938384		Clamp, Cover (w/original Compressor)		Appelez-nous	-
31	938385		Relay (w/original Compressor)		Appelez-nous	-
32	938385		Overload (w/original Compressor)		Appelez-nous	-
33	680483		Screw		Appelez-nous	-
34	727243		Lock		Appelez-nous	-
35	727300		Hook, Lock		Appelez-nous	-
36	727701		Shroud, Lock		Appelez-nous	-
37	753610		``o`` Ring		Appelez-nous	-
38	WP842177		Key   (Replaces: 842177)				$ 8.51
39	534927		Plug, Hole (2)		Appelez-nous	-
