01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts

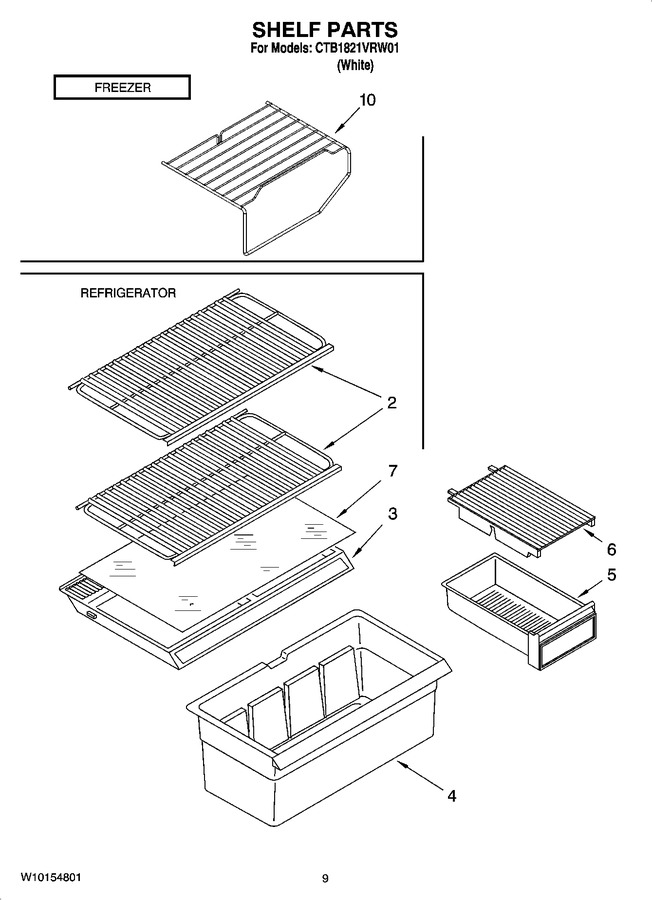

05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11181679 | Shelf (2) (Replaces: 2214064) |
|
$ 263.79 | |||||
| 3 | WP2192250 | Crisper Cover (Replaces: 2192250) |
|
Immediately | $ 193.23 | ||||
| 4 | WP2192009 | Crisper Pan (Replaces: 2192009) |
|
Immediately | $ 135.81 | ||||
| 5 | 2183273 | Pan, Meat |
|
$ 61.29 | |||||
| 6 | 9790379 | Cover, Meat Pan |
|
$ 77.22 | |||||
| 7 | WP2210047 | Glass, Cover (Replaces: 2210047) |
|
Immediately | $ 217.32 | ||||
| 10 | WPW10401596 | Shelf, Ice Tray (Replaces: 2262654) |
|
$ 86.39 | |||||
| NI | 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | |||||
| NI | 479502 | Tape, Vinyl(3/4 X 108``) |
|
$ 66.77 | |||||
| NI | 876370 | Kit, Insulation (2 Pcs.3`` X 24 `` X 48``) |
|
$ 243.14 | |||||
| NI | 876029 | Kit, Foam Slab (30`` X 32-1/2`` X 1-1/2``) |
|
- | |||||
| NI | 511873 | Touch-up, White Porcelain (2 Oz.) |
|
$ 51.75 | |||||
| NI | 606755 | Bag, Insulation(36-5/8`` X 46``) |
|
$ 82.37 | |||||
| NI | 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| NI | 799832 | Kit, Porcelain Repair (white) |
|
- | |||||
| NI | 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 94.14 | |||||
| NI | 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | |||||
| NI | 350930 | Enamel, White (12 Oz. Spray Can) |
|
Immediately | $ 40.12 | ||||
| NI | 253886 | Wire |
|
- | |||||
| NI | 799344 | Enamel, White (1 Qt. Uncut) |
|
$ 237.46 | |||||
| NI | 833938 | Kit, Terminal Connector |
|
$ 8.47 | |||||
| NI | 1117510 | Torx Key |
|
$ 5.84 | |||||
| NI | W11729596 | Field Installable Ice Maker (eckmf94) (Replaces: 2155469) |
|
Immediately | $ 150.98 | ||||
| NI | 72032 | Brush Touch-up Kit (black) |
|
Immediately | $ 18.69 | ||||
| NI | 72017 | Brush Touch-up Kit (white) |
|
Immediately | $ 12.30 | ||||
| NI | WP503695 | Cork Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | |||||
| NI | 542639 | Cement, Alumilastic (1-1/4 Oz.) |
|
- | |||||
| NI | WP542638 | Grease, Silicone (1/2 Oz) (Replaces: 542638) |
|
Immediately | $ 12.78 | ||||
| NI | WP505587 | Sealer, Mastic (1 Qt.) (Replaces: 505587) |
|
Immediately | $ 182.65 | ||||
| NI | 876370 | Insulation, Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 | |||||
| NI | 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 |
