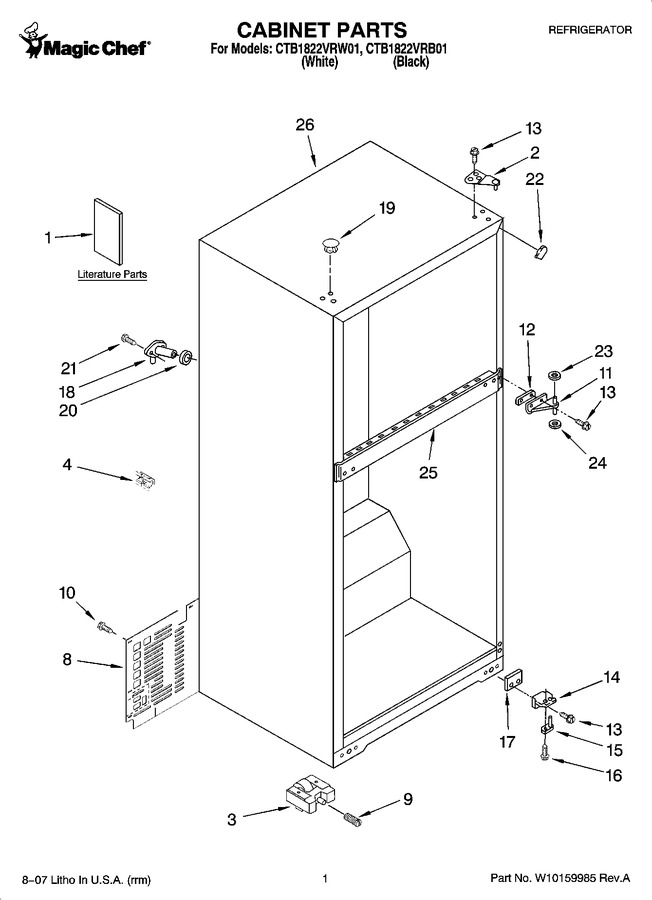

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual Ref./fzr.				$ 30.30
1	W10145175		Service & Wiring Sheet		Appelez-nous	-
1	2326133		Use & Care Guide		Appelez-nous	-
1	2326126		Energy Guide		Appelez-nous	-
1	206794		Switch (w/nut)		Appelez-nous	-
2	WP2261963		Hinge Butt, Top   (Replaces: 2261963)			Immediately	$ 99.45
3	2324094		Roller-front				$ 342.09
4	2266506		Spacer, Back				$ 13.70
8	WP2264132		Cover, Unit   (Replaces: 2264132)				$ 108.35
9	2222100		Screw				$ 99.81
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 78.16
12	2166043		Shim, Hinge Center				$ 66.44
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 29.09
14	WP2325482		Hinge Butt, Bottom   (Replaces: 2221926)			Immediately	$ 76.19
15	9791682		Hinge-pin, Bottom				$ 26.60
16	WP3428970		Screw   (Replaces: 3428970)				$ 10.91
17	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.77
18	WP2196157		Fitting, Water Tube   (Replaces: 2174760)			Immediately	$ 11.99
19	WP2183998		Hole Plug (6) (black)   (Replaces: 2183998)				$ 18.10
19	WP2151652		Hole Plug (6) (white)   (Replaces: 2201012)				$ 21.78
20	WP1106508		Seal   (Replaces: 1106508)			Immediately	$ 9.93
21	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.79
22	W10859322		Corner Filler (white)   (Replaces: 2166003)				$ 7.70
22	W11500943		Corner Filler (black)   (Replaces: 2215384)				$ 7.60
23	WP489467		Washer   (Replaces: 489341)			Immediately	$ 10.88
24	WP487576		Washer 7/64   (Replaces: 487576)			Immediately	$ 9.88
