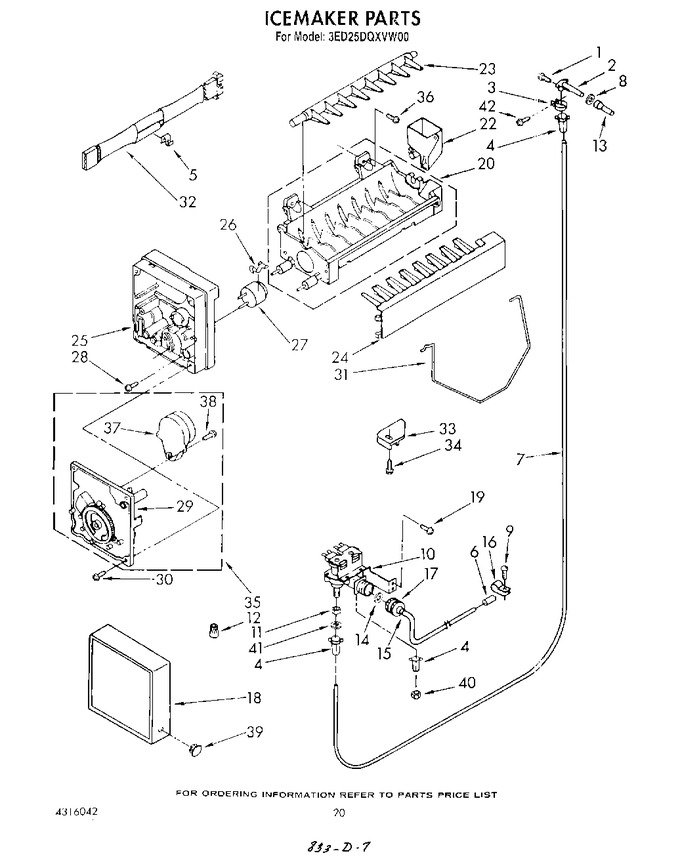

14 - Ice Maker , Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.67
2	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 11.99
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
4	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
5	WP628379		Clip, Fuse   (Replaces: 628288)				$ 10.57
6	WP2158826		Dampener   (Replaces: 836074)				$ 1.73
7	W10823511		Tube, Water   (Replaces: 653415)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
9	WP489069		Screw, 8 X 1/2   (Replaces: 488645)			Immediately	$ 7.86
10	4318046		Valve, Solenoid   (Replaces: 628295)			Immediately	$ 92.87
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
12	227991		Connector Wire		Appelez-nous	-
13	1114644		Tube, Water Inlet		Appelez-nous	-
14	628337		Washer		Appelez-nous	-
15	627860		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	628329		Cover		Appelez-nous	-
19	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 21.16
20	WPW10190929		Mold & Heater Assembly (also Order   (Replaces: 628228)				$ 233.15
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.18
22	WP628356		Bearing & Inlet   (Replaces: 627791)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 86.05
25	WP2195914		Support   (Replaces: 628326)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	542369		Cement Alumilastic)		Appelez-nous	-
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 109.18
28	8533917		Screw   (Replaces: 489322)				$ 13.37
29	W10190935		Module Assembly   (Replaces: 628332)			Immediately	$ 110.07
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	W11807379		Shut Off Arm   (Replaces: 628310)			Immediately	$ 60.20
32	WP2187464		Harness, Wiring   (Replaces: 628281)				$ 124.57
33	W11500948		Bracket   (Replaces: 628320)			Immediately	$ 32.17
34	00489128		Screw, 8-32 X 27/64   (Replaces: 489128)				$ 859.97
35	W10190935		Module Assembly (includes Items 29, 37 & 38)   (Replaces: 483101)			Immediately	$ 110.07
36	WP488163		Screw, 8 X 13/16   (Replaces: 488208)				$ 7.54
37	W10190935		Motor   (Replaces: 628258)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.29
39	489115		Snap-in Fastener				$ 5.51
40	1108005		Nut, Compression		Appelez-nous	-
41	488794		``o`` Ring		Appelez-nous	-
42	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
100	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
100	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
100	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
100	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
100	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
100	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
100	876370		Kit, Insulation (14 Pcs. X 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
100	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
100	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
100	4317943		Complete Icemaker Assembly   (Replaces: 4211173)			Immediately	$ 188.95
100	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
100	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
100	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
100	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
100	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
100	876370		Kit, Insulation 2 Pcs. X 3`` X 24`` X 48``)				$ 231.56
100	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
100	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
100	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
100	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
100	833938		Kit, Terminal Connector				$ 8.07
100	515393		Transformer (115-230 Volt)		Appelez-nous	-
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT1124920		Energy Label		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT1129511		Service & Wiring Sheet		Appelez-nous	-
	LIT1129509		Label, Use & Care Guide		Appelez-nous	-
	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
	350941		Xleveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
	350942		Primer White (13 Oz. Spray Can)				$ 89.66
	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
	LIT4316042		Parts List		Appelez-nous	-
