SELECT A DIAGRAM

02 - Cabinet


03 - Air Flow And Control


04 - Liner


05 - Door , Lit/optional

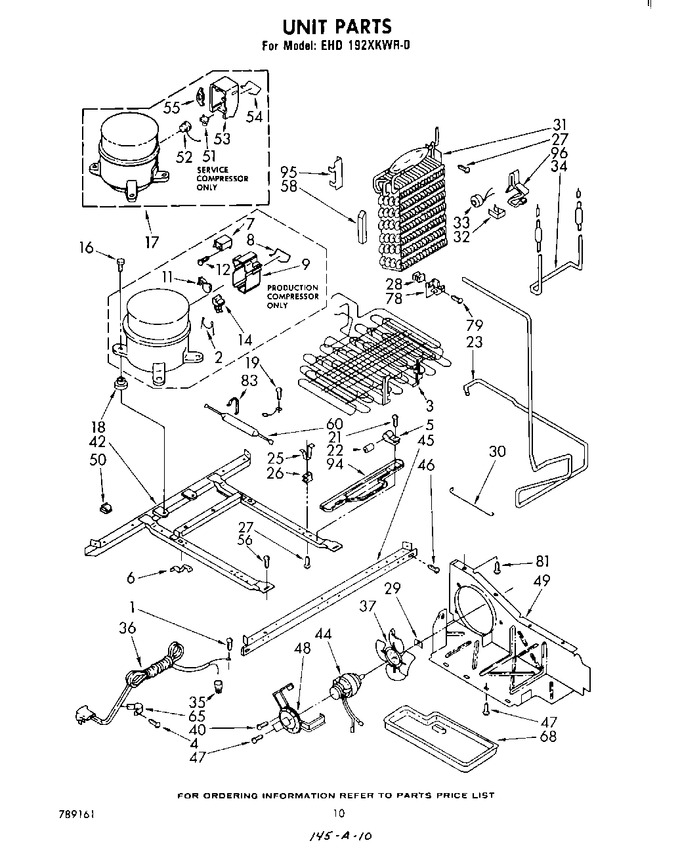

06 - Unit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	488474		Screw, Ground		Appelez-nous	-
2	943320		Overload Spring		Appelez-nous	-
3	943480		Condenser		Appelez-nous	-
4	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
5	510716		Clamp (2)		Appelez-nous	-
6	548744		Clip (2)		Appelez-nous	-
7	WPW10662129		Running Capacitor (use With Production Compressor Only)   (Replaces: 945508)			Immediately	$ 58.86
8	943322		Strap, Cover		Appelez-nous	-
9	943321		Cover		Appelez-nous	-
11	945585		Overload		Appelez-nous	-
12	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488197)				$ 22.22
14	945507		Relay		Appelez-nous	-
16	876811		Screw, 1/4-28 X 1 (4)   (Replaces: 489116)				$ 7.79
17	W10439652		Compressor (includes Items 51, 52, 53, 54 & 55) (also Order 876765 Tube Kit)   (Replaces: 702217)				$ 442.20
18	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
19	303776		Screw   (Replaces: 488879)		Appelez-nous	-
21	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
22	510769		Dampener (2)		Appelez-nous	-
23	945503		Exchanger, Heat		Appelez-nous	-
25	548738		Clamp (4)		Appelez-nous	-
26	943447		Grommet		Appelez-nous	-
27	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
28	944454		Grommet		Appelez-nous	-
29	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
30	850156		Guard, Fan		Appelez-nous	-
31	945577		Evaporator		Appelez-nous	-
32	513584		Clamp		Appelez-nous	-
33	WP4387489		Defrost, Bimetal   (Replaces: 934424)				$ 108.99
34	WP549433		Heater, Defrost   (Replaces: 934445)				$ 175.73
35	227991		Wire Connector		Appelez-nous	-
36	850626		Cord, Service		Appelez-nous	-
37	989524		Blade, Fan		Appelez-nous	-
40	488868		Screw, 8-36 X 3/8 (3)		Appelez-nous	-
42	945457		Frame		Appelez-nous	-
44	833697		Motor, Fan (alternate)   (Replaces: 851619)			Immediately	$ 109.14
44	R1211		Motor, Fan   (Replaces: 851618)				$ 145.61
45	548662		Rail, Front		Appelez-nous	-
46	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
47	488624		Screw, 8 X 3/8		Appelez-nous	-
48	548695		Bracket, Fan Motor		Appelez-nous	-
49	850764		Baffle, Air		Appelez-nous	-
50	548745		Clip, Wire (2)		Appelez-nous	-
51	549500		Relay		Appelez-nous	-
52	936073		Overload		Appelez-nous	-
53	549336		Terminal Cover		Appelez-nous	-
54	549342		Terminal Strap		Appelez-nous	-
55	549086		Spring, Overload		Appelez-nous	-
56	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
58	652985		Baffle, Air Evaporator (2)		Appelez-nous	-
60	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
65	549193		Clamp				$ 14.06
68	842041		Tray, Evaporating				$ 64.92
78	842436		Support, Evaporator		Appelez-nous	-
79	WP681414		Screw, 10-12 X 3/8   (Replaces: 489049)			Immediately	$ 8.47
81	488978		Screw, 8-15 X 3/8		Appelez-nous	-
83	548508		Clamp, Drier		Appelez-nous	-
94	945572		Pan, Drip		Appelez-nous	-
95	549435		Shield, Heat (2)		Appelez-nous	-
96	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
96	549419		Clamp (4)		Appelez-nous	-
96	978026		Valve, Access (5/16``)			Immediately	$ 134.49
96	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
96	978028		Valve, Access (1/2)		Appelez-nous	-
96	978029		Valve Access (5/8``)				$ 93.85
96	978030		Valve, Access (3/4``)				$ 137.25
96	876764		Valve, Access(3/16``)			Immediately	$ 95.92

    View Diagram in Separate Window       Print Part List
