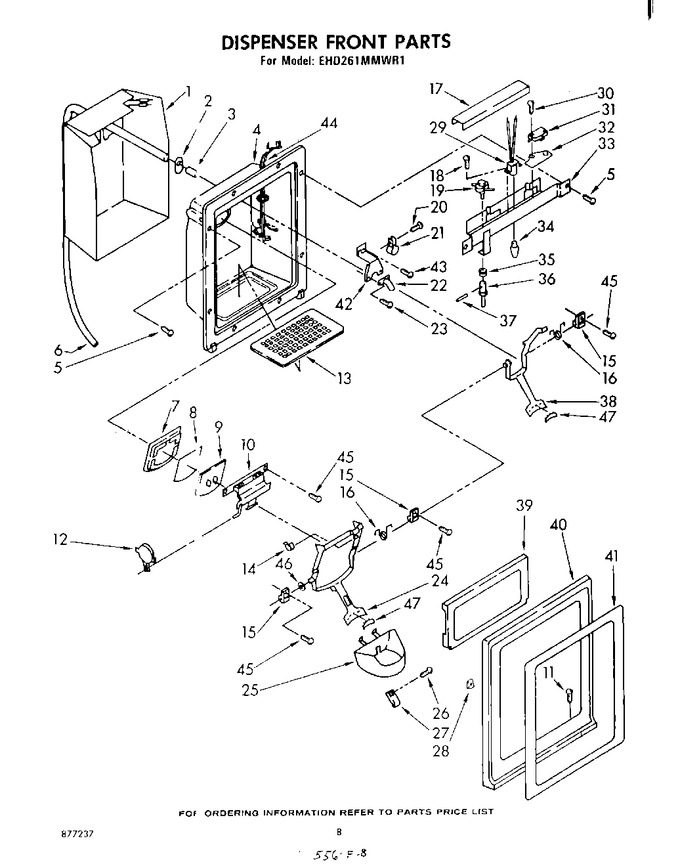

05 - Dispenser Front


06 - Refrigerator Door , Lit/optional


07 - Freezer Door


08 - Serva-door


09 - Ice Maker


10 - Unit


11 - Freezer Liner


12 - Refrigerator Interior


13 - Air Flow And Control


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	938107		Heater, Dispenser		Appelez-nous	-
2	987048		Grommet		Appelez-nous	-
3	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
4	983681		Housing, Dispenser		Appelez-nous	-
5	W11693756		Screw, 8 X 5/8   (Replaces: 488687)			Immediately	$ 14.06
6	W10823511		Tube, Water   (Replaces: 987053)			Immediately	$ 32.41
7	983691		Gasket, Door				$ 6.61
8	987121		Shield, Ice Door				$ 5.91
9	983690		Door, Ice				$ 11.13
10	983684		Door Mechanism Assembly		Appelez-nous	-
11	WP488729		Screw, 8 X 1/2 (2)   (Replaces: 488320)			Immediately	$ 7.79
12	983683		Mechanism Delay		Appelez-nous	-
13	983900		Grille, Overflow				$ 27.30
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	984494		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw, 8-32 X 3/8 (2)   (Replaces: 488500)				$ 10.88
19	851386		Switch, Light		Appelez-nous	-
20	WP965173		Screw 8 X 3/8   (Replaces: 487415)			Immediately	$ 10.72
21	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
22	WP4388152		Fitting, Water Inlet   (Replaces: 987050)				$ 276.43
23	WP965173		Screw, 8 X 3/8 (2)   (Replaces: 487916)			Immediately	$ 10.72
24	987075		Lever, Ice Dispenser				$ 46.56
25	985866		Guide, Ice				$ 18.30
26	488892		Screw, 4-24 X 3/8		Appelez-nous	-
27	986088		Stop, Glass		Appelez-nous	-
28	488885		Nut, Speed (2)		Appelez-nous	-
29	987265		Socket, Lamp		Appelez-nous	-
30	00488362		Screw, 4-40 X 3/4   (Replaces: 488362)				$ 144.58
31	841336		Switch (2)		Appelez-nous	-
32	984683		Insulator, Switch (2)		Appelez-nous	-
33	983983		Bracket, Control		Appelez-nous	-
34	WP22002263		Bulb, Light   (Replaces: 851389)			Immediately	$ 13.66
35	983986		Spring, Plunger		Appelez-nous	-
36	983985		Plunger, Extension		Appelez-nous	-
37	983987		Pin, Retiner		Appelez-nous	-
38	WP987074		Lever, Water Dispenser   (Replaces: 987074)				$ 117.22
39	983902		Cover, Housing		Appelez-nous	-
40	983903		Front Cover, Housing		Appelez-nous	-
41	937774		Insert, Housing		Appelez-nous	-
42	987049		Bracket, Water Fitting		Appelez-nous	-
43	488316		Screw, 8-18 X 3/4		Appelez-nous	-
44	851384		Wiring, Assembly Door		Appelez-nous	-
45	WP3400906		Screw, 9-12 X 1/2   (Replaces: 489000)				$ 7.84
46	488307		Washer (repair)		Appelez-nous	-
47	983693		Pad, Lever		Appelez-nous	-
