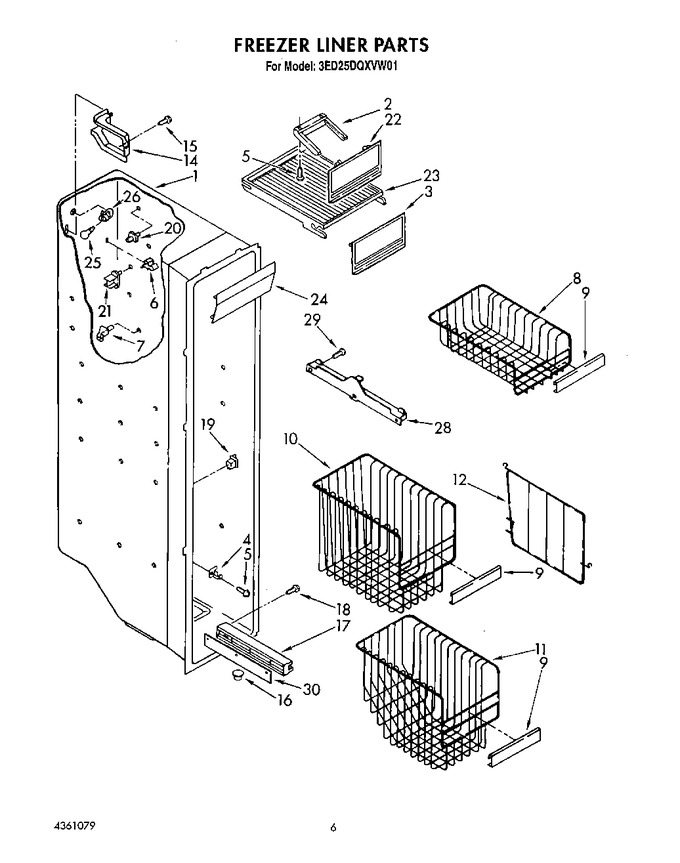

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 1115380 | Slide, Ice Door |
|
- | |||||
| 3 | 1115254 | Door, Ice Compartment |
|
- | |||||
| 4 | 1108436 | Evaporator, Support |
|
- | |||||
| 5 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 6 | 2215823 | Clip, Air Duct (2) (Replaces: 842534) |
|
$ 10.42 | |||||
| 7 | 1115317 | Support, Stud (4) |
|
- | |||||
| 8 | 2152099 | Basket (2) |
|
- | |||||
| 9 | 1120549 | Trim, Basket |
|
- | |||||
| 10 | 2152088 | Basket, Tall |
|
- | |||||
| 11 | 2152090 | Basket, Slope |
|
- | |||||
| 12 | 1115253 | Rack, Pizza |
|
- | |||||
| 14 | 1114607 | Wiring Cover |
|
- | |||||
| 15 | WP488729 | Screw (Replaces: 489176) |
|
Immediately | $ 7.79 | ||||
| 16 | 942768 | Fitting, Drain |
|
- | |||||
| 17 | 1113679 | Shelf Track (left Side (4)) |
|
- | |||||
| 17 | 1113678 | Shelf Track (right Side (4)) |
|
- | |||||
| 18 | W11693756 | Screw (Replaces: 487042) |
|
Immediately | $ 14.06 | ||||
| 19 | W11457217 | Switch, Rocker Arm (Replaces: 1115373) |
|
$ 38.18 | |||||
| 20 | 4388538 | Stud (4) (Replaces: 1110718) |
|
Immediately | $ 31.34 | ||||
| 21 | 1115386 | Stud, Shelf (4) |
|
- | |||||
| 22 | 1115258 | Door, Top Compartment |
|
- | |||||
| 23 | 1115256 | Shelf, Top Compartment |
|
- | |||||
| 24 | 1115389 | Light Lens |
|
- | |||||
| 25 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 26 | 4387478 | Light Socket (Replaces: 1129370) |
|
Immediately | $ 110.16 | ||||
| 28 | W10845585 | Slide, Container (left Side) (Replaces: 1119237) |
|
$ 132.77 | |||||
| 28 | W10845583 | Slide, Container (right Side) (Replaces: 1119293) |
|
$ 123.92 | |||||
| 29 | 718257 | Screw, 8 X 1-3/8 (4) (Replaces: 489100) |
|
- | |||||
| 30 | 1129195 | Shim, Basket Track (2) |
|
- |
