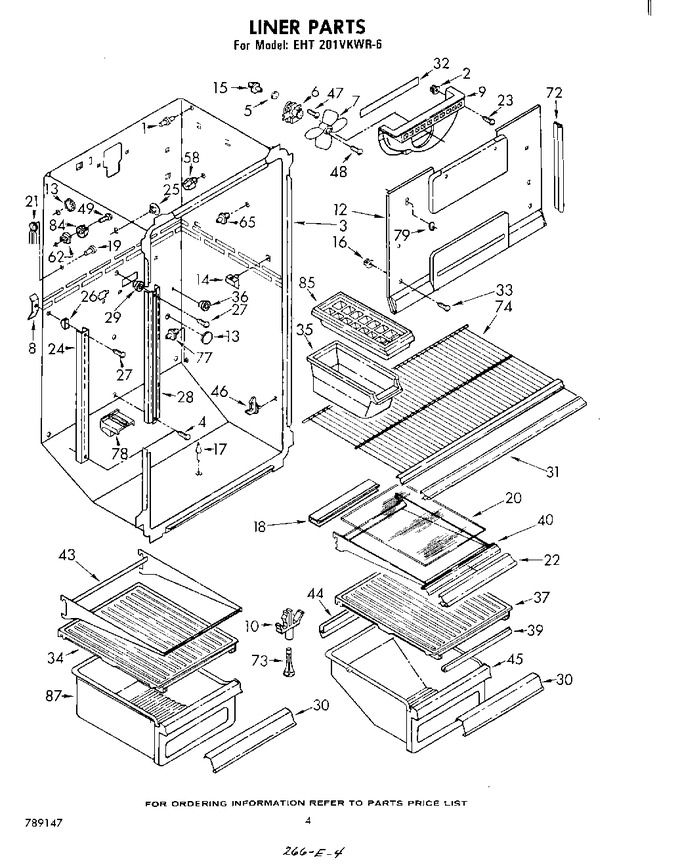

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	526383		Stud, Evaporator Cover		Appelez-nous	-
2	842339		Grommet		Appelez-nous	-
3	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
4	488960		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
4	488980		Screw (repair)		Appelez-nous	-
5	531933		Grommet (2)				$ 5.70
6	482731		Fan, Motor   (Replaces: 946653)			Immediately	$ 79.05
7	WP1100938		Blade, Fan   (Replaces: 548041)				$ 87.87
8	983604		Anchor, Screw (3)		Appelez-nous	-
9	935067		Scroll, Fan		Appelez-nous	-
10	848562		Support, Cover				$ 24.30
12	986624		Cover, Evaporator		Appelez-nous	-
13	519890		Plug, Hole (4)		Appelez-nous	-
14	836374		Stud, Retainer (4)		Appelez-nous	-
15	845722		Grommet (2)		Appelez-nous	-
16	848445		Grommet (4)		Appelez-nous	-
17	836409		Grommet, Crisper Post		Appelez-nous	-
18	991459		Retainer, Glass Shelf		Appelez-nous	-
19	850738		Cap, Receptacle		Appelez-nous	-
20	936828		Glass, Shelf		Appelez-nous	-
21	481658		Wiring, Ice Maker		Appelez-nous	-
22	935223		Trim, Shelf Front		Appelez-nous	-
23	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.02
24	934267		Ladder, Shelf (2)		Appelez-nous	-
25	659598		Plug, Hole (2)		Appelez-nous	-
26	520965		Support, Ladder (4)				$ 29.86
27	488357		Screw, 8 X 1-1/4 (3)		Appelez-nous	-
28	936230		Ladder, Shelf		Appelez-nous	-
29	520959		Support, Ladder (2)		Appelez-nous	-
30	986316		Overlay, Pan		Appelez-nous	-
31	985070		Trim, Freezer Shelf		Appelez-nous	-
32	935068		Gasket, Sealing		Appelez-nous	-
33	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.79
34	935123		Slide & Cover Pan (3)		Appelez-nous	-
35	WP982704		Container Utility   (Replaces: 935139)				$ 31.00
36	943920		Grommet Drain Fitting		Appelez-nous	-
37	942190		Pan Slide & Cover		Appelez-nous	-
39	942028		Gasket, Front (2)		Appelez-nous	-
40	936795		Shelf, Cantilever (3)		Appelez-nous	-
43	936285		Pan Shelf, Cantilever		Appelez-nous	-
44	942027		Gasket, Rear (2)		Appelez-nous	-
45	935201		Pan, Crisper (2)		Appelez-nous	-
46	836423		Stud, Shelf (2)		Appelez-nous	-
47	WP488488		Screw, 8 X 15/16   (Replaces: 488488)				$ 7.68
48	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
49	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 7.79
58	523263		Stud, Saddle (r.s.)		Appelez-nous	-
62	538449		Grommet		Appelez-nous	-
65	529758		Stud, Shelf (2)		Appelez-nous	-
72	981750		Gasket, Evaporator Cover (2)		Appelez-nous	-
73	836410		Post, Crisper				$ 5.84
74	935204		Shelf, Freezer		Appelez-nous	-
77	536475		Stud, Shelf (2)				$ 7.28
78	836412		Stud, Crisper Support		Appelez-nous	-
79	659776		Hole, Plug		Appelez-nous	-
84	836492		Stud, Shelf		Appelez-nous	-
85	WP841180A		Tray, Ice (2)   (Replaces: 841180)			Immediately	$ 45.56
87	935203		Pan, Meat		Appelez-nous	-
