SELECT A DIAGRAM
01 - Cabinet
02 - Unit

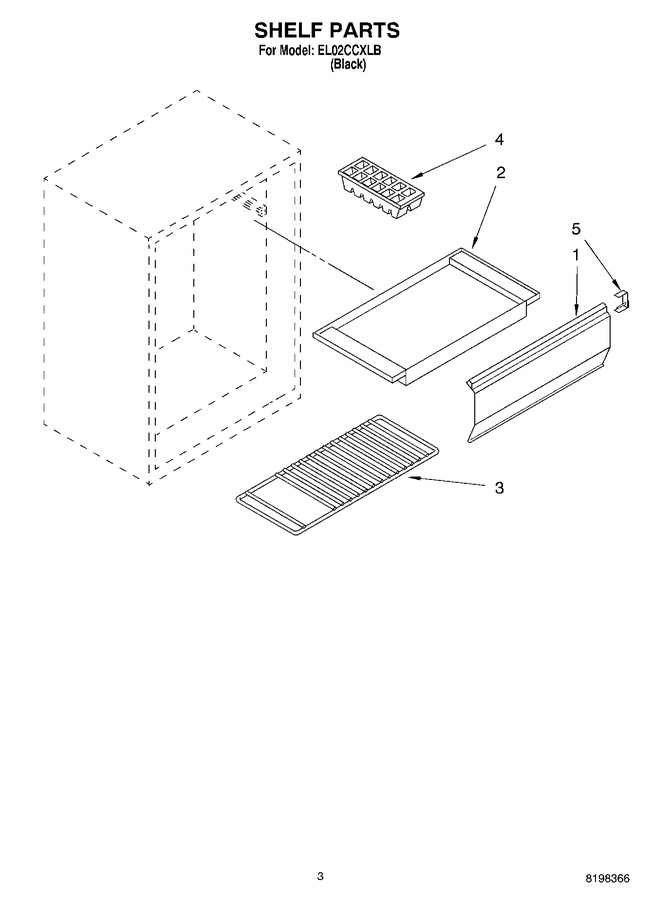

03 - Shelf
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4312516 | Door, Freezer |
|
- | |||||
| 2 | 4312517 | Tray, Freezer |
|
- | |||||
| 3 | 4312469 | Shelf, Wire |
|
- | |||||
| 4 | 4312585 | Tray, Ice Cube |
|
- | |||||
| 5 | 4312471 | Hinge, Freezer Door (2) |
|
- |
