SELECT A DIAGRAM

01 - Cabinet Parts


02 - Unit Parts


03 - Shelf Parts


04 - Door Parts

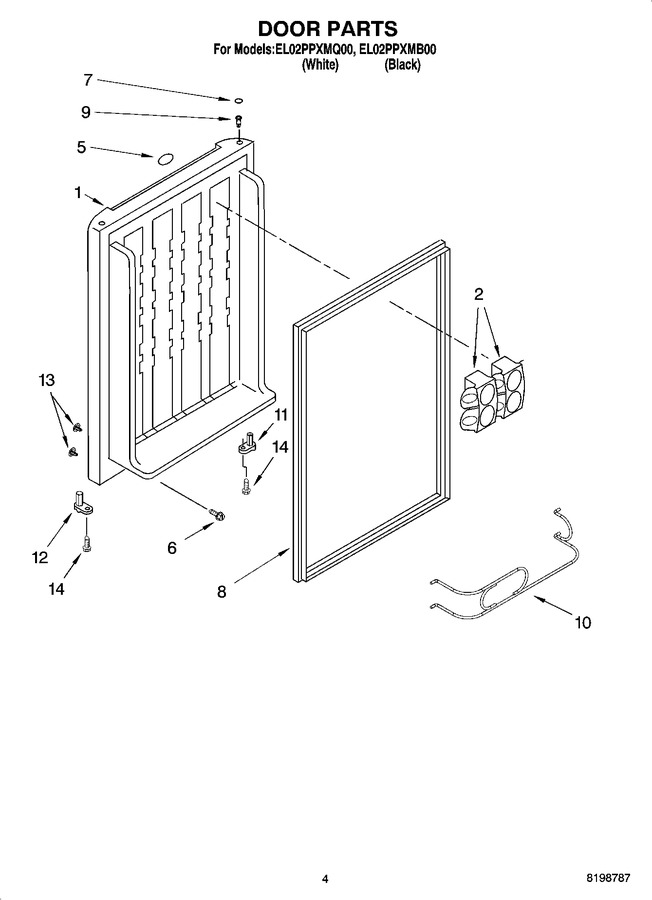

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8209168		Door (black)		Appelez-nous	-
1	8209167		Door (white)		Appelez-nous	-
2	4312788		Can Rack (2)		Appelez-nous	-
5	8209178		Nameplate		Appelez-nous	-
6	4312454		Screw		Appelez-nous	-
7	8209175		Cover (black)		Appelez-nous	-
7	4312786		Cover (white)		Appelez-nous	-
8	4312794		Gasket, Door (white)		Appelez-nous	-
8	8209176		Gasket, Door (black)		Appelez-nous	-
9	8209152		Bushing, Upper (black)		Appelez-nous	-
9	4312727		Bushing, Upper (white)		Appelez-nous	-
10	4312790		Door Rack		Appelez-nous	-
11	4312792		Door Closer (lh) (white)		Appelez-nous	-
11	4312793		Door Closer (lh) (black)		Appelez-nous	-
12	4312798		Door Closer (rh) (white)		Appelez-nous	-
12	4312799		Door Closer (rh) (black)		Appelez-nous	-
13	4312440		Bushing		Appelez-nous	-
14	8209153		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
