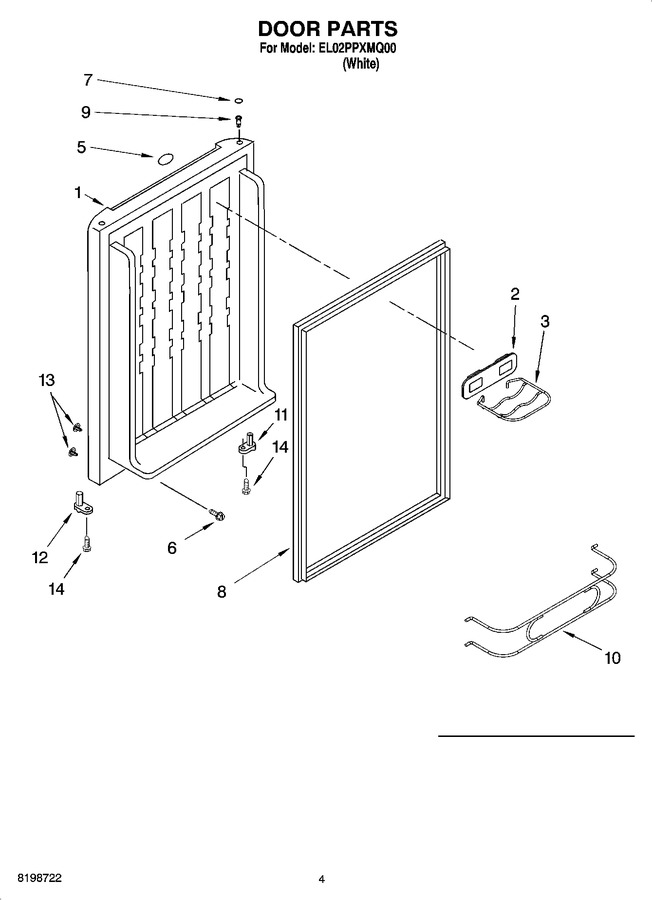

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4312781 | Door (white) |
|
- | |||||
| 2 | 8209154 | Support |
|
- | |||||
| 3 | 4312787 | Can Rack (2) |
|
- | |||||
| 5 | 4312726 | Nameplate |
|
- | |||||
| 6 | 4312454 | Screw |
|
- | |||||
| 7 | 4312786 | Cover |
|
- | |||||
| 8 | 4312794 | Gasket, Door (white) |
|
- | |||||
| 9 | 4312727 | Bushing, Upper (white) |
|
- | |||||
| 10 | 4312790 | Door Rack |
|
- | |||||
| 11 | 4312792 | Door Closer (lh) (white) |
|
- | |||||
| 12 | 4312798 | Door Closer (rh) (white) |
|
- | |||||
| 13 | 4312440 | Bushing |
|
- | |||||
| 14 | 8209153 | Screw |
|
- |
