01 - Cabinet

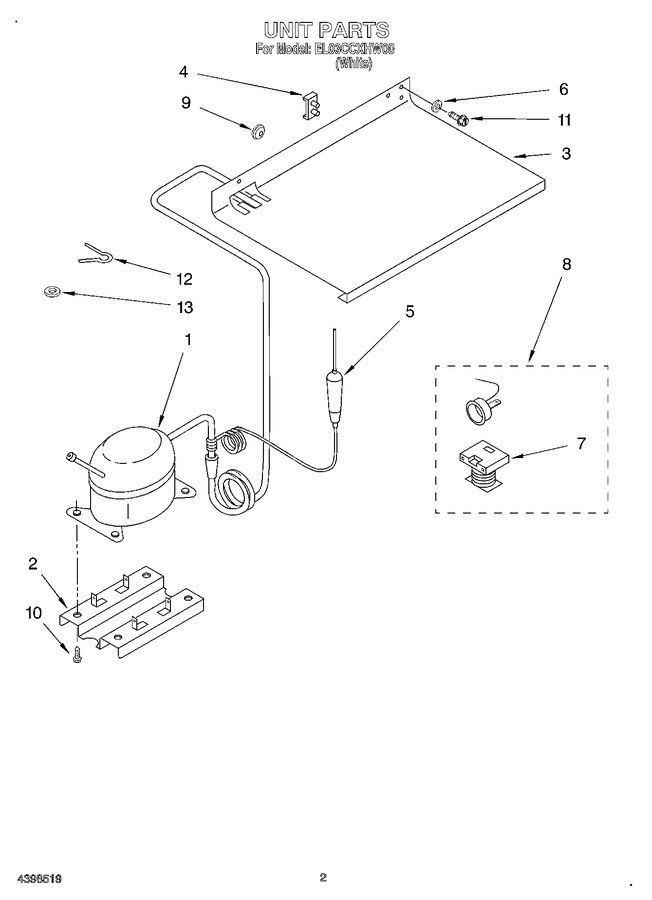

02 - Unit
03 - Shelf
04 - Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4312506 | Compressor |
|
- | |||||
| 2 | 4312457 | Base, Compressor |
|
- | |||||
| 3 | 4312507 | Evaporator |
|
- | |||||
| 4 | 4312459 | Retainer, Evaporator |
|
- | |||||
| 5 | W10843121 | Drier (Replaces: 4312496) |
|
Immediately | $ 57.13 | ||||
| 6 | 4312461 | Washer |
|
- | |||||
| 7 | N/A | Relay (see Overload) |
|
- | |||||
| 8 | 4312462 | Overload (includes Relay) |
|
- | |||||
| 9 | 4312463 | Stud, Evaporator |
|
- | |||||
| 10 | WP4312464 | Screw (Replaces: 4312464) |
|
$ 7.30 | |||||
| 11 | W11233072 | Screw (Replaces: 4312450) |
|
Immediately | $ 14.72 | ||||
| 12 | 4312465 | Pin, Cotter |
|
- | |||||
| 13 | 4312466 | Washer |
|
- |
