SELECT A DIAGRAM

01 - Cabinet Parts


02 - Unit Parts


03 - Shelf Parts

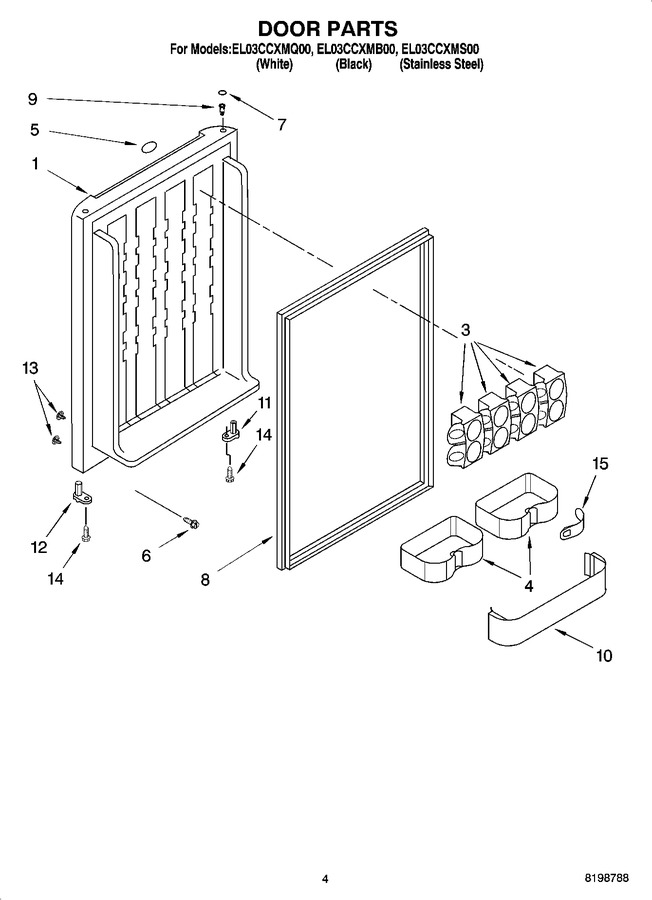

04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8209170		Door (black)		Appelez-nous	-
1	8209171		Door (stainless Steel)		Appelez-nous	-
1	8209169		Door (white)		Appelez-nous	-
3	4312788		Can Rack (4)		Appelez-nous	-
4	4312789		Door Bin (2)		Appelez-nous	-
5	8209178		Nameplate		Appelez-nous	-
6	4312454		Screw		Appelez-nous	-
7	4312786		Cover (white)		Appelez-nous	-
7	8209175		Cover (black)		Appelez-nous	-
8	4312795		Gasket, Door (white)		Appelez-nous	-
8	8209177		Gasket, Door (black)		Appelez-nous	-
9	4312727		Bushing, Upper (white)		Appelez-nous	-
9	8209152		Bushing, Upper (black)		Appelez-nous	-
10	8209179		Door Bin		Appelez-nous	-
11	4312792		Door Closer (lh) (white)		Appelez-nous	-
11	8312793		Door Closer (lh) (black)		Appelez-nous	-
12	4312799		Door Closer (rh) (black)		Appelez-nous	-
12	4312798		Door Closer (rh) (white)		Appelez-nous	-
13	4312440		Bushing		Appelez-nous	-
14	8209153		Screw		Appelez-nous	-
15	8209154		Separator, Bottle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
