SELECT A DIAGRAM

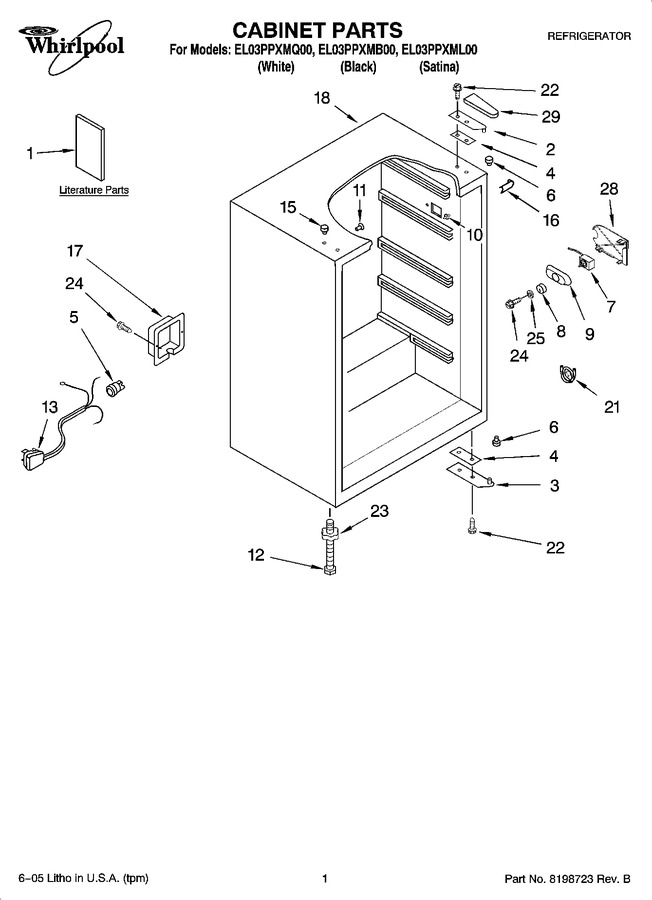

01 - Cabinet Parts


02 - Unit Parts


03 - Shelf Parts


04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8209155		Owners Manual		Appelez-nous	-
2	4312748		Hinge, Top (black)		Appelez-nous	-
2	4312747		Hinge, Top (white)		Appelez-nous	-
3	4312750		Hinge, Bottom (black)		Appelez-nous	-
3	4312749		Hinge, Bottom (white)		Appelez-nous	-
4	4312438		Shim, Hinge		Appelez-nous	-
5	4312439		Strain Relief		Appelez-nous	-
6	4312440		Bushing, Hinge		Appelez-nous	-
7	4312752		Thermostat		Appelez-nous	-
8	4312753		Knob, Thermostat		Appelez-nous	-
9	4312754		Control Box		Appelez-nous	-
10	4312443		Stud		Appelez-nous	-
11	4312765		Stud		Appelez-nous	-
12	4312405		Screw		Appelez-nous	-
13	4312756		Power Cord				$ 34.40
15	4312574		Plug, Hole (black)		Appelez-nous	-
15	4312447		Plug, Hole (white)		Appelez-nous	-
16	8209151		Filler, Wrapper (white)		Appelez-nous	-
16	4312575		Filler, Wrapper (black)		Appelez-nous	-
17	4312514		Box, Junction		Appelez-nous	-
18	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
21	4312579		Bulb, Thermostat		Appelez-nous	-
22	4312453		Screw		Appelez-nous	-
23	8209163		Leveler (black (right))		Appelez-nous	-
23	8209160		Leveler (white (left))		Appelez-nous	-
23	8209161		Leveler (black (left))		Appelez-nous	-
23	8209162		Leveler (white (right))		Appelez-nous	-
24	4312454		Screw		Appelez-nous	-
25	4312455		Washer		Appelez-nous	-
28	4312755		Shield, Control Box		Appelez-nous	-
29	8209159		Cover, Hinge (black)		Appelez-nous	-
29	4312757		Cover, Hinge (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
