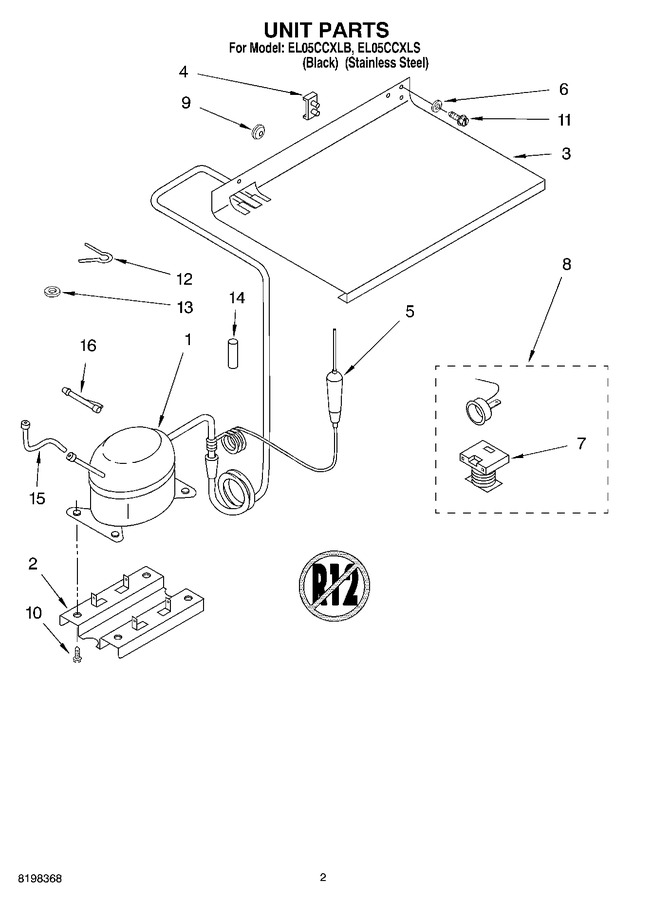

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4312510		Compressor		Appelez-nous	-
2	4312457		Base, Compressor		Appelez-nous	-
3	4312529		Evaporator		Appelez-nous	-
4	4312459		Retainer, Evaporator		Appelez-nous	-
5	W10843121		Drier   (Replaces: 4312496)			Immediately	$ 57.13
6	4312461		Washer		Appelez-nous	-
7	N/A		Relay (see Overload)		Appelez-nous	-
8	4312582		Overload (includes Relay)				$ 118.82
9	4312463		Stud, Evaporator		Appelez-nous	-
10	WP4312464		Screw   (Replaces: 4312464)				$ 7.30
11	W11233072		Screw   (Replaces: 4312450)			Immediately	$ 14.72
12	4312465		Pin, Cotter		Appelez-nous	-
13	4312466		Washer		Appelez-nous	-
14	4312530		Gasket		Appelez-nous	-
15	4312580		Tube, Connector		Appelez-nous	-
16	4312577		Connector, Suction Line		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
