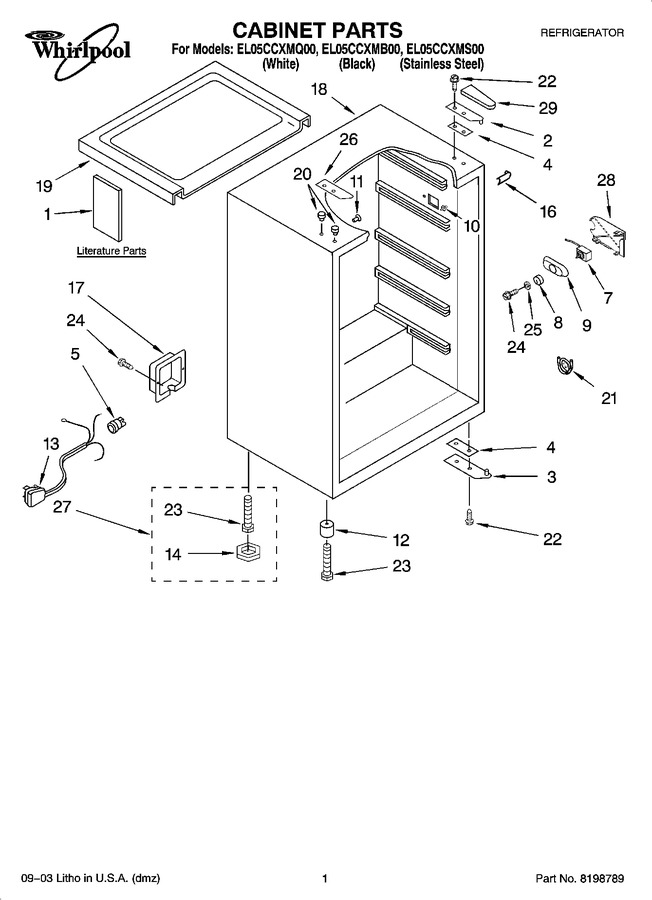

01 - Cabinet Parts


02 - Unit Parts


03 - Shelf Parts


04 - Door Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8209155		Owners Manual		Appelez-nous	-
2	4312748		Hinge, Top (black)		Appelez-nous	-
2	4312747		Hinge, Top (white)		Appelez-nous	-
3	4312749		Hinge, Bottom (white)		Appelez-nous	-
3	4312750		Hinge, Bottom (black)		Appelez-nous	-
4	4312438		Shim, Hinge		Appelez-nous	-
5	4312439		Strain Relief		Appelez-nous	-
7	4312752		Thermostat		Appelez-nous	-
8	4312753		Knob, Thermostat		Appelez-nous	-
9	4312754		Control Box		Appelez-nous	-
10	4312443		Stud		Appelez-nous	-
11	4312765		Stud		Appelez-nous	-
12	8209161		Foot, Front (black-left)		Appelez-nous	-
12	8209160		Foot, Front (white-left)		Appelez-nous	-
12	2209163		Foot, Front (black-right)		Appelez-nous	-
12	2209162		Foot, Front (white-right)		Appelez-nous	-
13	4312756		Power Cord				$ 34.40
14	4312406		Cap, Leveler		Appelez-nous	-
16	8209151		Filler, Wrapper (white)		Appelez-nous	-
16	4312575		Filler, Wrapper (black)		Appelez-nous	-
17	4312514		Box, Junction		Appelez-nous	-
18	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
19	8209157		Cover, Cabinet (white)		Appelez-nous	-
19	8209158		Cover, Cabinet (black)		Appelez-nous	-
20	4312574		Hole Plug (black)		Appelez-nous	-
20	4312447		Hole Plug (white)		Appelez-nous	-
21	4312579		Bulb, Thermostat		Appelez-nous	-
22	4312453		Screw		Appelez-nous	-
23	4312405		Leveler		Appelez-nous	-
24	4312454		Screw		Appelez-nous	-
25	4312455		Washer		Appelez-nous	-
26	8209164		Support, Cover (white)		Appelez-nous	-
26	8209165		Support, Cover (black)		Appelez-nous	-
27	4312407		Kit, Leg Leveler				$ 5.30
28	4312755		Shield, Control Box		Appelez-nous	-
29	4312757		Cover, Hinge (white)		Appelez-nous	-
29	8209159		Cover, Hinge (black)		Appelez-nous	-
