SELECT A DIAGRAM

01 - Cover


03 - Backguard


05 - Burner


07 - Body


09 - Top/drawer


11 - Door

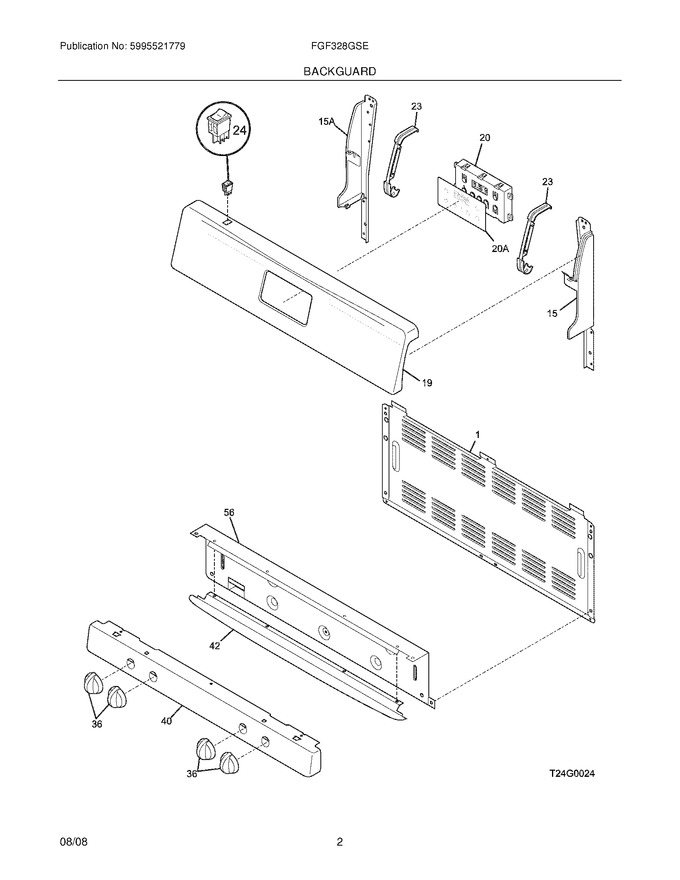

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316281802		Shield,backguard ,rear Wall   (Replaces: 316416100)				$ 64.04
15	316411403		Support,backguard ,white ,rh				$ 84.10
19	316445219		Panel,backguard ,white				$ 98.19
23	316441600		Bracket-clock Mtg,black				$ 22.75
36	316220008		Knob,top Valve ,white ,(4)			Immediately	$ 41.29
40	316204989		Panel,manifold ,white				$ 98.49
42	316270601		Trim,extrusion ,grey				$ 142.01
56	316230708		Shield,backguard ,inner   (Replaces: 316230701)				$ 68.51
15A	316411402		Support,backguard ,white ,lh				$ 94.55
20A	316220728		Overlay,clock ,white   (Replaces: 316220700)			Immediately	$ 43.82
F20	5304518661		Clock/timer,electronic ,es100   (Replaces: 316455410)			Immediately	$ 164.52
F24	5304527842		Switch,rocker ,white ,oven Light   (Replaces: 316448701)			Immediately	$ 17.92
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 30.55
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 30.55
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 30.55
NI	316519700		Screw,cup Pt ,8-18 X 0.375 ,chrome   (Replaces: 316021108)				$ 11.13

    View Diagram in Separate Window       Print Part List
