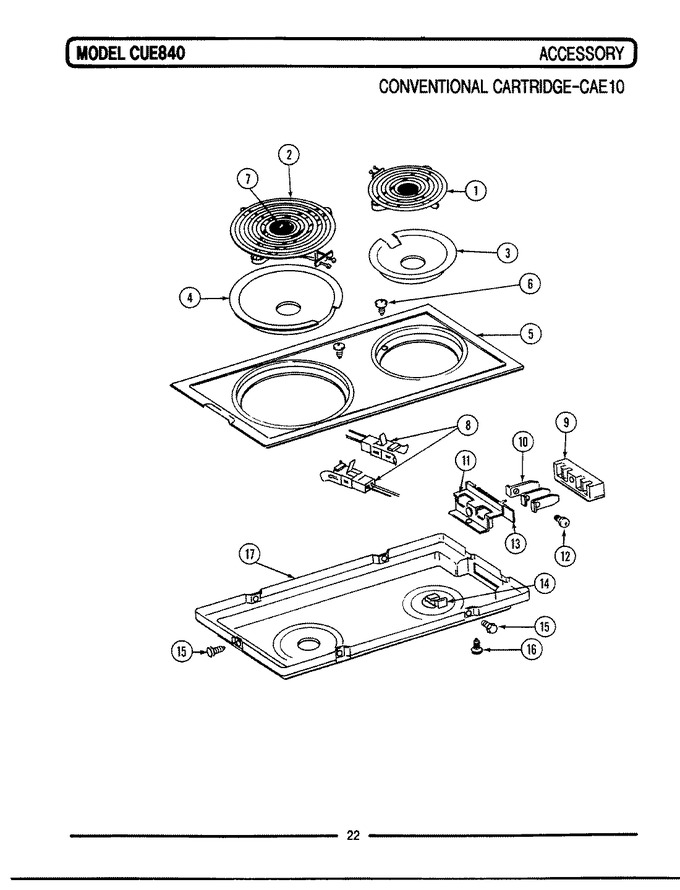

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPY04100165		Surface Element-small   (Replaces: 550071)			Immediately	$ 56.24
1	715929		Elem 6 208v		Appelez-nous	-
2	WPY04100166		Surface Element-large   (Replaces: 550072)			Immediately	$ 52.46
2	Y715930		Element, Conventional		Appelez-nous	-
3	715877		Pan, Drip (6``)			Immediately	$ 21.54
4	715878		Pan, Drip (8``)			Immediately	$ 23.51
5	WP2002F208-50		Cartridge, Top (chr)   (Replaces: 700535)				$ 219.73
6	WP74004005		Screw   (Replaces: Y708359)				$ 8.66
7	Y700132		Medallion		Appelez-nous	-
8	12001676		Rewire Kit   (Replaces: 700125)			Immediately	$ 31.61
9	WPY708730		Block, Terminal   (Replaces: Y708730)				$ 102.01
10	Y708572		Spade, Contact			Immediately	$ 13.23
11	Y700648		Bracket, Retaining Assy.		Appelez-nous	-
12	WP488234		Screw   (Replaces: 708861)				$ 7.08
13	708834		Insulator, Contact Spade				$ 15.74
14	Y708910		Clip		Appelez-nous	-
15	WP12990527		Screw   (Replaces: Y708955)			Immediately	$ 8.76
16	715870		Screw		Appelez-nous	-
17	703347		Pan, Cartridge (blk)		Appelez-nous	-
