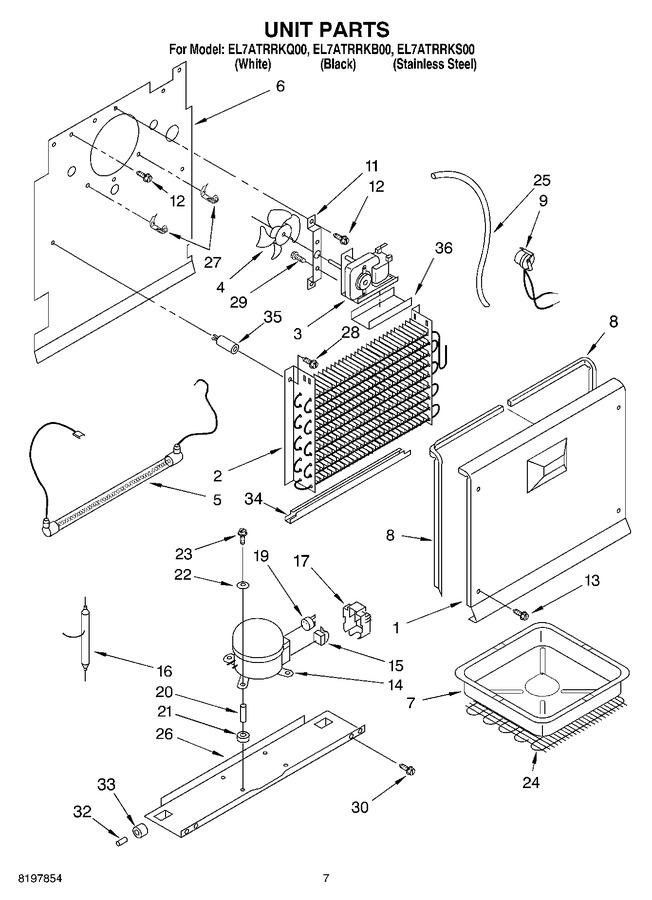

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390662		Cover, Evaporator				$ 147.35
2	4390782		Evaporator		Appelez-nous	-
3	4357004		Fan Motor		Appelez-nous	-
4	WPW10445742		Fan Blade   (Replaces: 4356920)			Immediately	$ 10.55
5	W11175809		Heater Defrost   (Replaces: 4356923)			Immediately	$ 184.11
6	4357123		Plate, Evaporator Mount		Appelez-nous	-
7	4390675		Drain Pan				$ 129.57
8	4390663		Gasket, Evaporator Cover (right)				$ 250.95
8	4390664		Gasket, Evaporator Cover (left)				$ 93.57
9	WP1-81801-001		Bi-metal Defrost   (Replaces: 4390783)			Immediately	$ 129.87
11	2-80028-101		Bracket, Motor   (Replaces: 4357256)				$ 98.68
12	60001022		Screw, Motor   (Replaces: 4356943)				$ 66.41
13	WP3-24004-109		Screw   (Replaces: 4357110)				$ 9.14
14	4356715		Compressor		Appelez-nous	-
15	4356716		Relay				$ 112.84
16	4001		Drier   (Replaces: 4357299)			Immediately	$ 10.71
17	WP2162358		Cover   (Replaces: 4356599)				$ 95.29
19	2264602		Overload   (Replaces: 4356717)				$ 163.36
20	4356846		Sleeve				$ 15.00
21	4356335		Compressor Grommet		Appelez-nous	-
22	4356847		Washer		Appelez-nous	-
23	4356852		Screw, Compressor				$ 6.57
24	4390660		Condenser		Appelez-nous	-
25	WP4357245		Heat, Exchanger   (Replaces: 4357245)			Immediately	$ 284.25
26	4390753		Compressor Pan		Appelez-nous	-
27	4356952		Thermostat, Clip		Appelez-nous	-
28	4357139		Screw				$ 6.57
29	WP3400094		Screw   (Replaces: 4356970)				$ 9.26
30	WP3-24838-048		Screw   (Replaces: 4357277)				$ 8.33
32	3-60315-001		Roller   (Replaces: 4390754)				$ 32.89
33	4390755		Axle				$ 13.86
34	4357254		Shield, Heater		Appelez-nous	-
35	4357020		Grommet		Appelez-nous	-
36	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
36	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
36	WP505587		Sealer, Master (1 Qt.)   (Replaces: 505587)			Immediately	$ 182.65
36	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
36	4357128		Shield, Motor   (Replaces: 4357255)				$ 114.21
36	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
36	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
36	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
36	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
