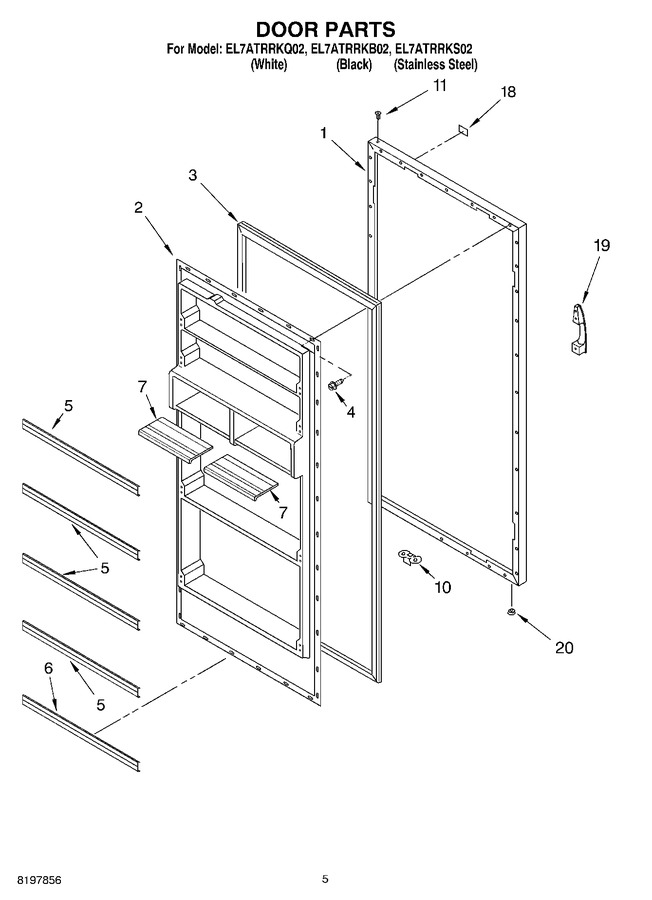

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390777		Exterior Door (includes Insulation) (white)		Appelez-nous	-
1	4390785		Exterior Door (includes Insulation) (black)		Appelez-nous	-
1	4390788		Exterior Door (includes Insulation) (stainless Steel)		Appelez-nous	-
2	4390778		Interior Panel		Appelez-nous	-
3	WP4357142		Gasket (white)   (Replaces: 4357142)			Immediately	$ 279.97
3	WP4-81048-007		Gasket (black)   (Replaces: 4390759)				$ 377.45
4	4390598		Screw   (Replaces: 4357290)				$ 22.04
5	4390751		Trim Shelf Upper		Appelez-nous	-
6	4390752		Trim Shelf, Lower		Appelez-nous	-
7	4390780		Door, Compartment (long)		Appelez-nous	-
7	4390779		Door, Compartment (short)		Appelez-nous	-
10	4390695		Door Stop		Appelez-nous	-
11	4390731		Bushing (white/ss)				$ 19.69
11	4390869		Bushing (black)		Appelez-nous	-
18	WP2213265		Nameplate (black)   (Replaces: 4390758)			Immediately	$ 93.18
18	4390656		Nameplate (white)		Appelez-nous	-
19	3-82596-002		Handle Kit (white)   (Replaces: 4390747)				$ 265.43
19	4390757		Handle Kit (black)		Appelez-nous	-
20	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
