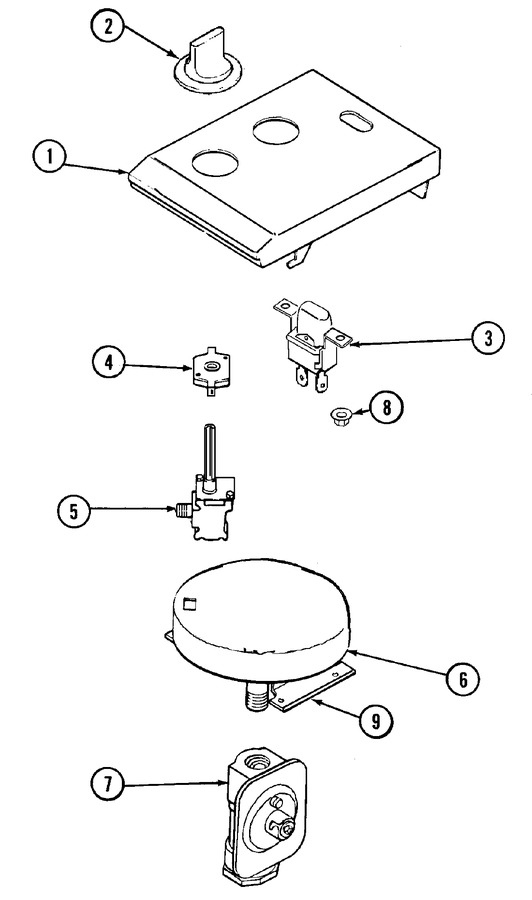

01 - Blower Assembly-plenum
02 - Body
03 - Control Panel
04 - Top Assembly
05 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71001640 | Escutcheon, Gas (blk) | 11 |
|
- | ||||
| 2 | WP71001641 | Knob, Valve (Replaces: 71001641) | 11 |
|
Immediately | $ 18.29 | |||
| 3 | 71001564 | Switch, Fan (blk) | 11 |
|
- | ||||
| 4 | WPY704513 | Switch, Valve (lt) (Replaces: Y704513) | 11 |
|
$ 114.83 | ||||
| 5 | WPY04100188 | Valve, Gas (lt) (Replaces: Y04100188) | 11 |
|
$ 259.99 | ||||
| 6 | Y04100807 | Manifold | 11 |
|
- | ||||
| 7 | W11106948 | Regulator, Pressure (Replaces: Y704545) | 11 |
|
Immediately | $ 238.90 | |||
| 8 | 71001561 | Palnut | 11 |
|
- | ||||
| 9 | WP488234 | Screw (Replaces: 708861) | 11 |
|
$ 7.08 | ||||
| 9 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 8.25 | |||
| 9 | 71001642 | Bracket, Manifold | 11 |
|
- | ||||
| NI | 71001567 | Wire (ylw) | 11 |
|
- | ||||
| NI | 71001568 | Wire (blu-blk) | 11 |
|
- | ||||
| NI | 71001643 | Wire (blue)----na | 11 |
|
- | ||||
| NI | 704384 | Harness, Wire | 11 |
|
- | ||||
| NI | 71001644 | Wire (wht) | 11 |
|
- | ||||
| NI | 71001566 | Wire (brn) | 11 |
|
- | ||||
| NI | 71001645 | Manual, Use & Care | 11 |
|
- | ||||
| NI | 16000326 | Guide, Quick Ref - Jenn-air | 11 |
|
- |
