SELECT A DIAGRAM

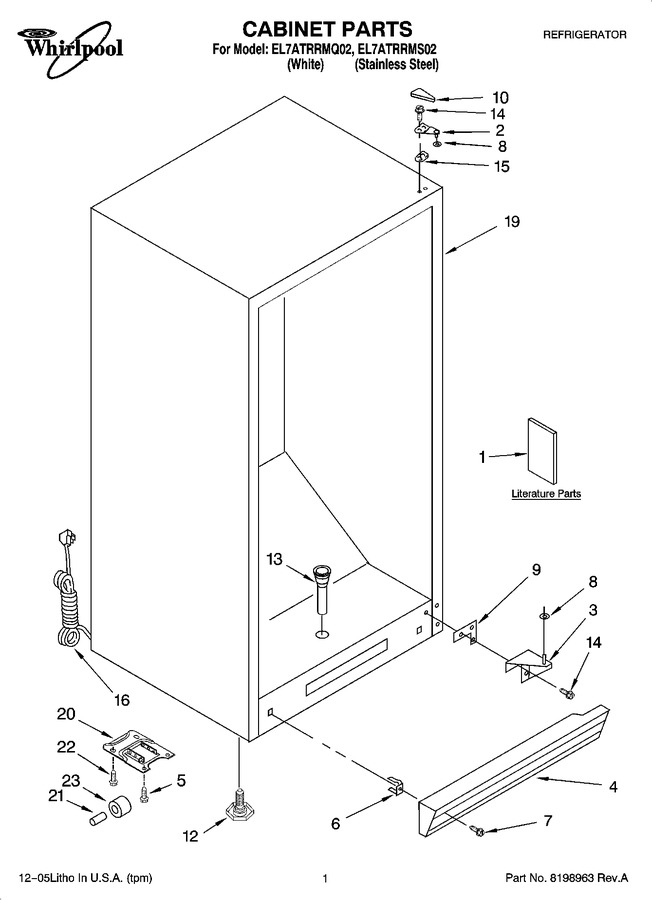

01 - Cabinet Parts


02 - Liner Parts


03 - Door Parts


04 - Unit Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4390928		Owners Manual		Appelez-nous	-
1	4390929		Energy Guide		Appelez-nous	-
2	4390673		Top, Hinge (white)		Appelez-nous	-
2	4390762		Top Hinge (black)				$ 14.73
3	4357250		Bottom Hinge (white)		Appelez-nous	-
3	4390786		Bottom Hinge (black)		Appelez-nous	-
4	4390787		Grille (includes 6 & 7) (black)		Appelez-nous	-
4	WP4-60461-005		Grille (includes 6 & 7) (white)   (Replaces: 4357251)				$ 117.48
5	WP3-24838-048		Screw   (Replaces: 4357277)				$ 8.33
6	1-80247-101		Clip, Grille   (Replaces: 4356803)			Immediately	$ 11.50
7	WP489478		Screw   (Replaces: 4356805)				$ 8.18
8	W10851331		Washer   (Replaces: 4390520)				$ 10.57
9	4356828		Shim, Bottom				$ 12.40
10	4390763		Hinge Cover (black)				$ 31.92
10	4357279		Hinge Cover (white)				$ 46.56
12	W11117769		Leg, Leveller   (Replaces: 4390567)			Immediately	$ 19.37
13	4357268		Drain Hose		Appelez-nous	-
14	WP8204624		Screw   (Replaces: 4356830)				$ 17.48
15	4390489		Shim, Hinge				$ 7.30
16	4390696		Power Cord				$ 90.49
19	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
20	8210265		Bracket, Roller		Appelez-nous	-
21	8210211		Axle		Appelez-nous	-
22	8210266		Screw		Appelez-nous	-
23	8210210		Roller, Front		Appelez-nous	-
