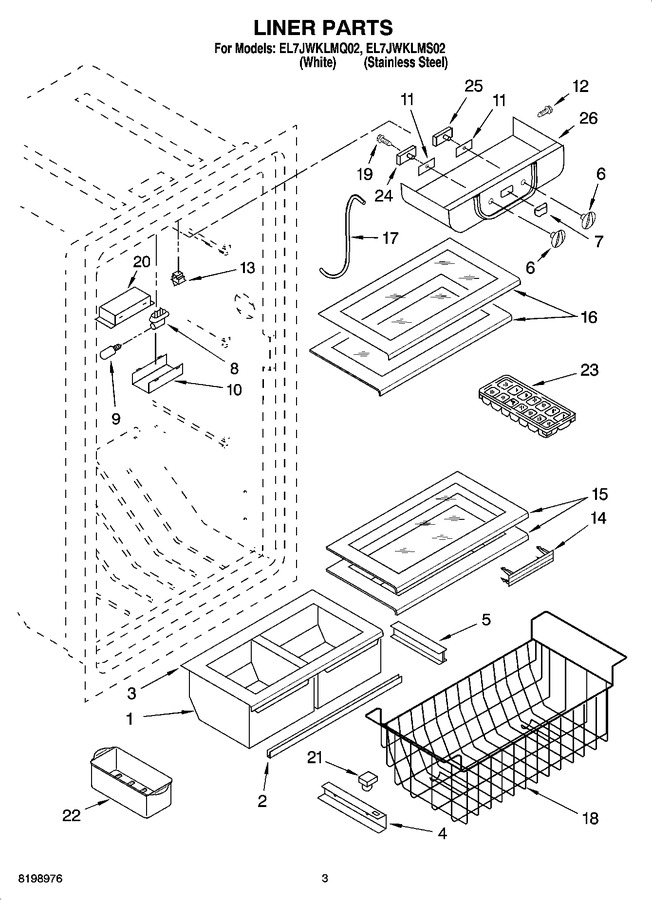

02 - Liner Parts


03 - Door Parts


04 - Unit Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8210237		Pan, Crisper		Appelez-nous	-
2	4390774		Support, Crisper Cover		Appelez-nous	-
3	4390772		Shelf, Crisper Pan				$ 132.57
4	4390820		Rail Crisper Cover (left Side)				$ 77.44
4	4390819		Rail Crisper Cover (right Side)		Appelez-nous	-
5	4390773		Channel, Crisper Cover		Appelez-nous	-
6	8210206		Knob, Control		Appelez-nous	-
7	8210203		Switch (illuminated)		Appelez-nous	-
8	4390644		Lamp, Socket		Appelez-nous	-
9	W11679940		Bulb, Light   (Replaces: 4390465)			Immediately	$ 11.30
10	4390743		Light Shield		Appelez-nous	-
11	1-81154		Plate, Thermostat   (Replaces: 4357287)				$ 15.00
12	WPW10068250		Screw   (Replaces: 4357042)				$ 4.27
13	W11384469		Switch, Light   (Replaces: 4390513)			Immediately	$ 39.09
14	WP3-80414-103		Vent Plug   (Replaces: 4357295)				$ 13.50
15	4390817		Shelf, Middle				$ 113.01
16	4390816		Shelf, Top		Appelez-nous	-
17	WP2196003		Tubing, Thermostat   (Replaces: 4356800)				$ 8.35
18	4390818		Basket, Middle		Appelez-nous	-
19	WP489478		Screw   (Replaces: 4357243)				$ 8.18
20	4390744		Housing, Light		Appelez-nous	-
21	4390823		Stop, Basket		Appelez-nous	-
22	4390943		Egg Bin		Appelez-nous	-
23	WP841180A		Tray, Ice Cube   (Replaces: 4390944)			Immediately	$ 47.84
24	8210207		Control, Temp. (rc)				$ 110.22
25	8210208		Control, Temp. (fc)		Appelez-nous	-
26	8210204		Housing, Control		Appelez-nous	-
