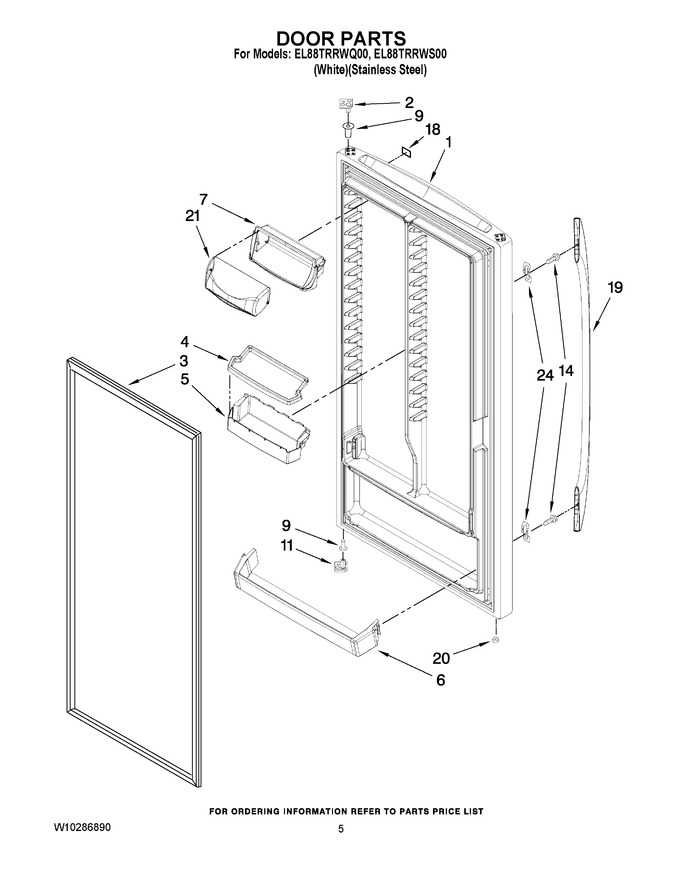

03 - Door Parts


04 - Unit Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296809		Exterior Door (includes Interior Liner) (white)				$ 783.33
1	W10289597		Exterior Door (includes Interior Liner) (stainless Steel)				$ 907.44
2	8210402		Stop, Door (top) (black)				$ 163.99
2	W10296810		Stop, Door (top) (white)		Appelez-nous	-
3	WP4-65151-002		Gasket (white)   (Replaces: 8210339)				$ 377.13
3	W10260543		Gasket (black)		Appelez-nous	-
4	8210383		Cover, Bin				$ 35.04
5	W10179592		Bin, Door		Appelez-nous	-
6	8210379		Rail, Door (lower)		Appelez-nous	-
7	8210381		Housing, Dairy Compartment		Appelez-nous	-
9	W10271519		Bushing, Hinge (black)		Appelez-nous	-
9	4390731		Bushing, Hinge (white)				$ 19.69
11	W10256537		Stop, Door (bottom) (natural)		Appelez-nous	-
14	WP489491		Screw   (Replaces: 489491)				$ 7.30
18	WP2213265		Nameplate   (Replaces: 2255121)			Immediately	$ 93.18
19	W10202711		Handle (brushed Aluminum (includes Item 8))		Appelez-nous	-
19	W10296510		Handle (white)		Appelez-nous	-
20	3-24898-007		Vent Plug   (Replaces: 4357067)				$ 11.34
21	8210382		Door, Compartment		Appelez-nous	-
24	WP2255411		Clip, Handle   (Replaces: 2255411)				$ 36.55
