SELECT A DIAGRAM

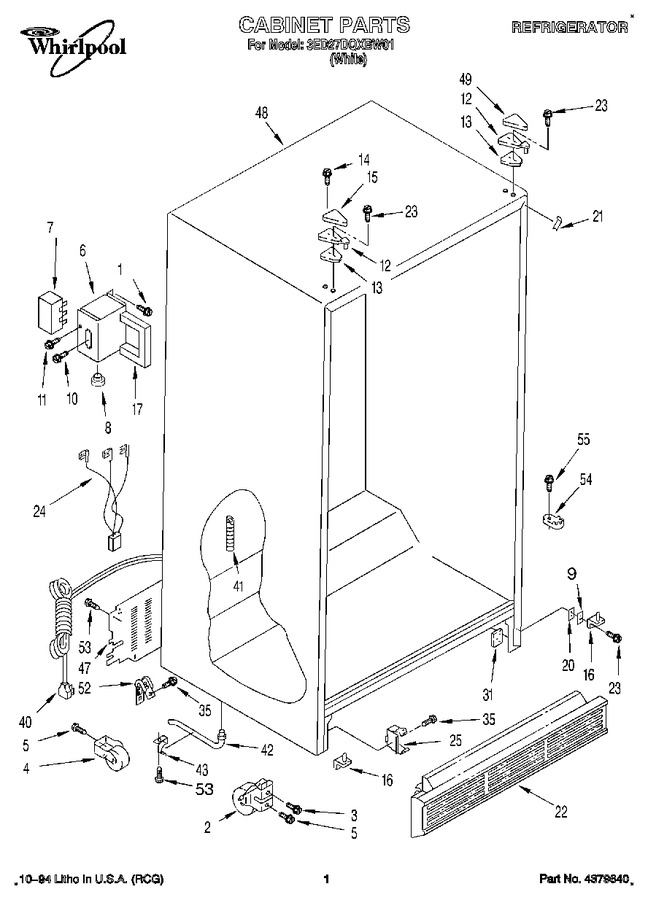

01 - Cabinet


02 - Refrigerator Liner


03 - Refrigerator Shelf


04 - Freezer Liner


05 - Motor And Ice Container


06 - Refrigerator Door


07 - Freezer Door


08 - Dispenser Front


09 - Unit


10 - Air Flow


11 - Control


12 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP250830		Screw   (Replaces: 489048)				$ 8.78
2	2174749		Front Roller (2)		Appelez-nous	-
3	489432		Screw		Appelez-nous	-
4	WPW10250570		Roller, Rear (2)   (Replaces: 981122)				$ 42.18
5	488454		Screw,		Appelez-nous	-
6	2158579		Cover, Terminal Block		Appelez-nous	-
7	1129346		Terminal Block		Appelez-nous	-
8	1129449		Bushing		Appelez-nous	-
9	WP2181911		Shim   (Replaces: 2156056)				$ 34.87
10	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
11	00489346		Screw   (Replaces: 489346)				$ 380.15
12	2171865		Hinge Top (2)		Appelez-nous	-
13	2171868		Shim, Hinge Top		Appelez-nous	-
14	489284		Screw		Appelez-nous	-
15	1129262		Hinge Cover				$ 15.75
16	8201707		Hinge Bottom (2)   (Replaces: 2171851)				$ 97.45
17	2167227		Gasket		Appelez-nous	-
20	1129868		Spacer, Hinge		Appelez-nous	-
21	1110708		Filler, Wrapper		Appelez-nous	-
22	2155486		Grille		Appelez-nous	-
23	WP999367		Screw   (Replaces: 489367)				$ 8.56
24	2209657		Wiring Assembly   (Replaces: 2165297)		Appelez-nous	-
25	WP2155013		Clip, Grille   (Replaces: 2155013)			Immediately	$ 8.11
31	2147310		Tap Plate (2)		Appelez-nous	-
35	WP489478		Screw   (Replaces: 489242)				$ 8.18
40	1129332		Service Cord		Appelez-nous	-
41	W11566763		Fitting, Drain   (Replaces: 940139)			Immediately	$ 53.45
42	WP1108438		Tube, Extension   (Replaces: 1108438)			Immediately	$ 32.90
43	WP1108439		Clip, Drain Tube   (Replaces: 1108439)				$ 11.28
47	2171942		Cover, Unit		Appelez-nous	-
48	N/A		Cabinet (not A Serviceable Part)		Appelez-nous	-
49	1119787		Hinge Cover				$ 22.50
52	489348		Clamp, Service Cord		Appelez-nous	-
53	WPW10141645		Screw   (Replaces: 489084)				$ 8.05
54	WPW10329686		Door Closer, Lower Cam (2)   (Replaces: 2155311)			Immediately	$ 5.90
55	WP489483		Screw   (Replaces: 489420)				$ 11.41

    View Diagram in Separate Window       Print Part List
