01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts

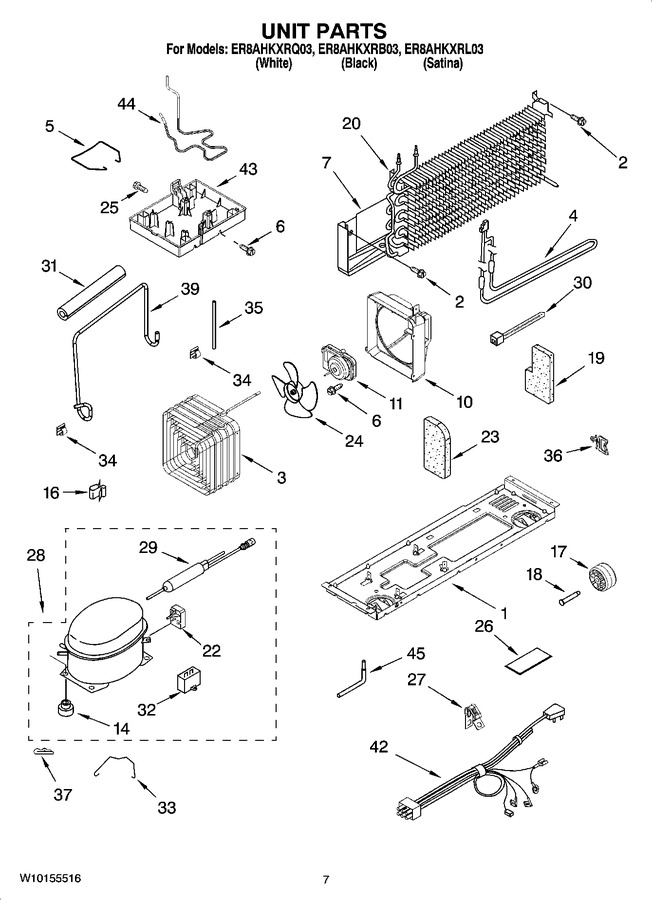

04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10222450 | Support Plate, Compressor (Replaces: W10127456) |
|
$ 139.79 | |||||
| 2 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 3 | W10140200 | Condenser |
|
- | |||||
| 4 | WP2263749 | Heater, Defrost (Replaces: 2176942) |
|
Immediately | $ 93.70 | ||||
| 5 | 2264835 | Clip, Condensor |
|
- | |||||
| 6 | WPW10171469 | Screw (Replaces: 8533859) |
|
Immediately | $ 11.06 | ||||
| 7 | 2319224 | Heat Shield |
|
$ 116.21 | |||||
| 10 | WP2263929 | Air Baffle (Replaces: 2263929) |
|
$ 90.12 | |||||
| 11 | W11578915 | Motor, Condensor (Replaces: 2188875) |
|
Immediately | $ 71.42 | ||||
| 14 | WP4387558 | Grommet (service) (Replaces: 4387558) |
|
$ 6.95 | |||||
| 14 | WP2163786 | Grommet (production) (Replaces: 2222084) |
|
$ 7.96 | |||||
| 16 | W10812038 | Clip, Wire (Replaces: 939054) |
|
- | |||||
| 17 | WPW10475495 | Roller (Replaces: 2150304) |
|
Immediately | $ 32.06 | ||||
| 18 | WP2264756 | Axle, Rivet (Replaces: 2264756) |
|
$ 7.19 | |||||
| 19 | 2262191 | Wedge-evaporator |
|
- | |||||
| 20 | WP2263920 | Evaporator Assy. (Replaces: 2263920) |
|
Immediately | $ 317.35 | ||||
| 22 | WPW10197428 | Start- Device Combination (start Relay And Overload For Production Compressor Only) (Replaces: W10128791) |
|
Immediately | $ 89.21 | ||||
| 23 | 2262192 | Wedge-evaporator |
|
- | |||||
| 24 | 2264129 | Fan Blade |
|
Immediately | $ 104.75 | ||||
| 25 | WP489489 | Screw (Replaces: 2264841) |
|
$ 6.47 | |||||
| 26 | 2266360 | Shield,electrical |
|
- | |||||
| 27 | 549193 | Clamp-cord |
|
$ 13.39 | |||||
| 28 | W10233960 | Compressor (includes Items 14,29,& 32) (Replaces: W10141544) |
|
Immediately | $ 513.66 | ||||
| 29 | WPW10143759 | Drier (service) (Replaces: 2317845) |
|
Immediately | $ 30.78 | ||||
| 30 | WPW10339879 | Strap (Replaces: 2263990) |
|
$ 7.90 | |||||
| 31 | 2264838 | Sleeve |
|
$ 87.89 | |||||
| 32 | WPW10662129 | Capacitor (production) (Replaces: 2264017) |
|
Immediately | $ 58.86 | ||||
| 32 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 58.86 | ||||
| 33 | W10141545 | Bale Strap |
|
- | |||||
| 34 | W11501419 | Clip, Wiring (Replaces: 1114718) |
|
Immediately | $ 11.52 | ||||
| 35 | 2264278 | Tube, Drain |
|
$ 75.97 | |||||
| 36 | 2266467 | Clip, Harness |
|
- | |||||
| 37 | 24364001 | Clip, Compressor |
|
- | |||||
| 39 | W10140199 | Extension, Tube-heat |
|
- | |||||
| 42 | 2263753 | Wire Assy. Unit |
|
$ 64.42 | |||||
| 43 | WP2263928 | Evaporator Tray (Replaces: 2263928) |
|
$ 141.92 | |||||
| 44 | W10140197 | Tube, Discharge (incl. Pre-cooler) |
|
- | |||||
| 45 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 105.25 | ||||
| 45 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 45 | 978030 | Valve, Access (3/4``) |
|
$ 130.71 | |||||
| 45 | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 91.35 | ||||
| 45 | W10140201 | Tube, Process |
|
- | |||||
| 45 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 128.09 | ||||
| 45 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 21.64 | |||||
| 45 | 978028 | Valve, Access (1/2) |
|
- |
