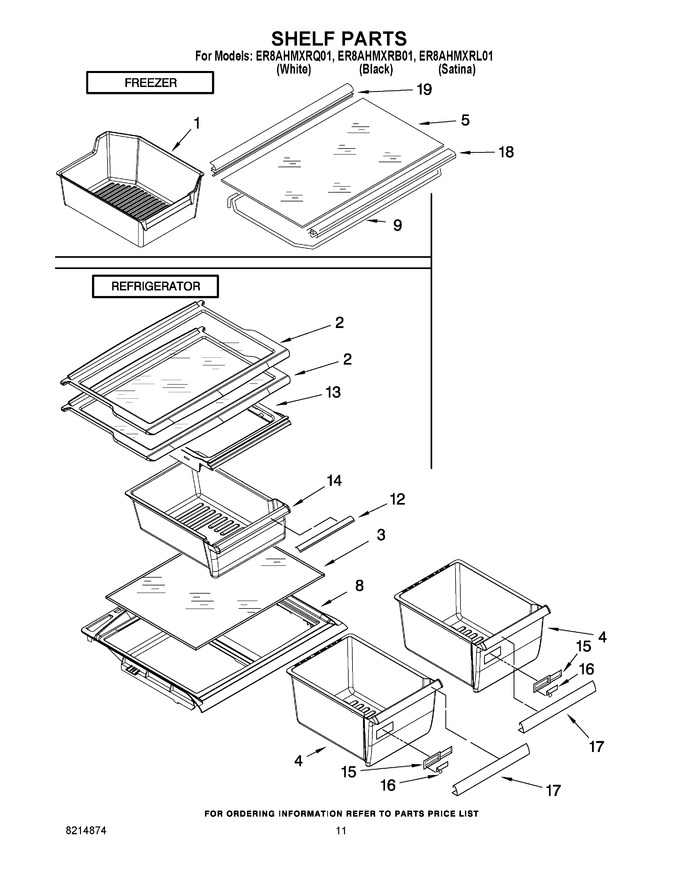

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11625904 | Pan, Ice Cube (Replaces: 2166261) |
|
$ 67.83 | |||||
| 2 | W10837901 | Shelf (Replaces: 2263641) |
|
$ 266.29 | |||||
| 3 | WP2262441 | Glass, Cover (Replaces: 2262441) |
|
Immediately | $ 232.92 | ||||
| 4 | W11475670 | Crisper Pan (includes Items 15, 16 & 17) (Replaces: 2263086) |
|
Immediately | $ 140.55 | ||||
| 5 | WP2262442 | Glass, Shelf (Replaces: 2262442) |
|
$ 223.48 | |||||
| 8 | WP2222031 | Cover, Crisper (Replaces: 2222031) |
|
Immediately | $ 260.25 | ||||
| 9 | 2252848 | Shelf-frame, Wire |
|
$ 77.81 | |||||
| 12 | 2263087 | Trim, Meat Pan |
|
$ 176.20 | |||||
| 13 | WP2256601 | Holder, Meat Pan (Replaces: 2256601) |
|
$ 180.21 | |||||
| 14 | 2263088 | Meat Pan (includes Illus. 12) |
|
- | |||||
| 15 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.81 | |||||
| 16 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 17 | 2263085 | Trim, Crisper Pan |
|
$ 110.61 | |||||
| 18 | 2215011 | Trim, Shelf (front) |
|
$ 119.04 | |||||
| 19 | 2215010 | Trim, Shelf (rear) |
|
- |
