SELECT A DIAGRAM

01 - Cabinet Parts

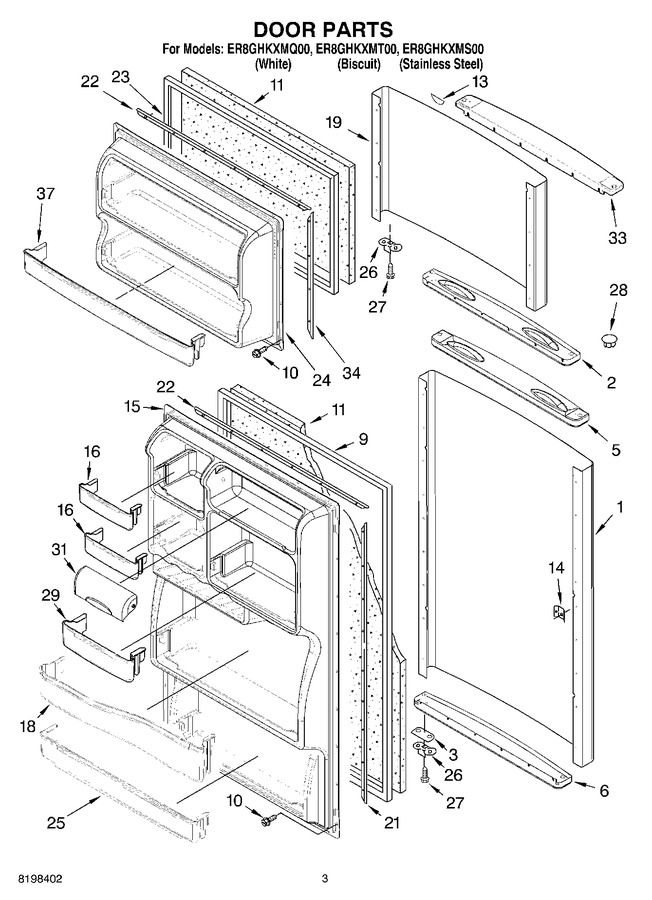

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2222039W		Refrigerator Door Panel (white) (includes Items 5 & 6) (also Order Item 11)		Appelez-nous	-
1	2222039S		Refrigerator Door Panel (stainless Steel) (includes Item 5 & 6) (also Order Item 11)		Appelez-nous	-
1	2222039T		Refrigerator Door Panel (biscuit) (includes Item 5 & 6) (also Order Item 11)		Appelez-nous	-
2	2265645W		Handle (fc Door) (white)   (Replaces: 2258858W)				$ 209.50
2	2258858T		Handle (fc Door) (biscuit)		Appelez-nous	-
2	2258858B		Handle (fc Door) (black)		Appelez-nous	-
3	2258681B		Shim, Door Stop (black)				$ 43.17
3	WP2258681W		Shim, Door Stop (white)   (Replaces: 2258681W)			Immediately	$ 7.19
5	2265645W		Handle (rc Door) (white)   (Replaces: 2222011)				$ 209.50
5	2222044		Handle (rc Door) (biscuit)		Appelez-nous	-
5	2222045		Handle (rc Door) (black)				$ 41.70
6	2222012		Endcap, Bottom (white)		Appelez-nous	-
6	2222047		Endcap, Bottom (biscuit)		Appelez-nous	-
6	2222048		Endcap, Bottom (black)		Appelez-nous	-
9	WP2319264T		Door Gasket, Magnetic (mist Beige)   (Replaces: 2197171)			Immediately	$ 192.71
9	WP2319264B		Door Gasket, Magnetic (black)   (Replaces: 2215400)				$ 308.43
10	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.94
11	876029		Foam Insulation (required When Replacing Exterior Door Panel)		Appelez-nous	-
13	WP2213265		Nameplate (black)   (Replaces: 2214196N)			Immediately	$ 88.74
13	WP2213265		Nameplate (biscuit)   (Replaces: 2214196T)			Immediately	$ 88.74
13	WP2213265		Nameplate (white)   (Replaces: 2214196W)			Immediately	$ 88.74
14	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
15	2202234		Interior Door Panel (refrigerator)		Appelez-nous	-
16	2214110		Trim, Door Shelf		Appelez-nous	-
18	2214104		Trim, Door (middle)				$ 33.35
19	2222013S		Freezer Door Panel (also Order Item 11) (stainless Steel)		Appelez-nous	-
19	2222013T		Freezer Door Panel (also Order Item 11) (biscuit)		Appelez-nous	-
19	2222013W		Freezer Door Panel (also Order Item 11) (white)		Appelez-nous	-
21	2197082		Retainer, Gasket		Appelez-nous	-
22	1120614		Retainer, Gasket				$ 27.51
23	2188462A		Door Gasket, Magnetic (mist Beige)   (Replaces: 2191889)				$ 114.77
23	2215401		Door Gasket, Magnetic (black)		Appelez-nous	-
24	2215043		Interior Door Panel (freezer)		Appelez-nous	-
25	2214113		Trim, Door Shelf (bottom)		Appelez-nous	-
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
27	W10276642		Screw   (Replaces: 8533904)				$ 6.10
28	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.61
28	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 23.06
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.80
29	2214101		Trim, Door		Appelez-nous	-
31	2214116		Compartment Door		Appelez-nous	-
33	2252860		Endcap, Top (white)		Appelez-nous	-
33	2252862		Endcap, Top (biscuit)		Appelez-nous	-
33	2252863		Endcap, Top (black)			Immediately	$ 148.12
34	1122553		Retainer, Gasket		Appelez-nous	-
37	2214107		Trim, Door Shelf		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
