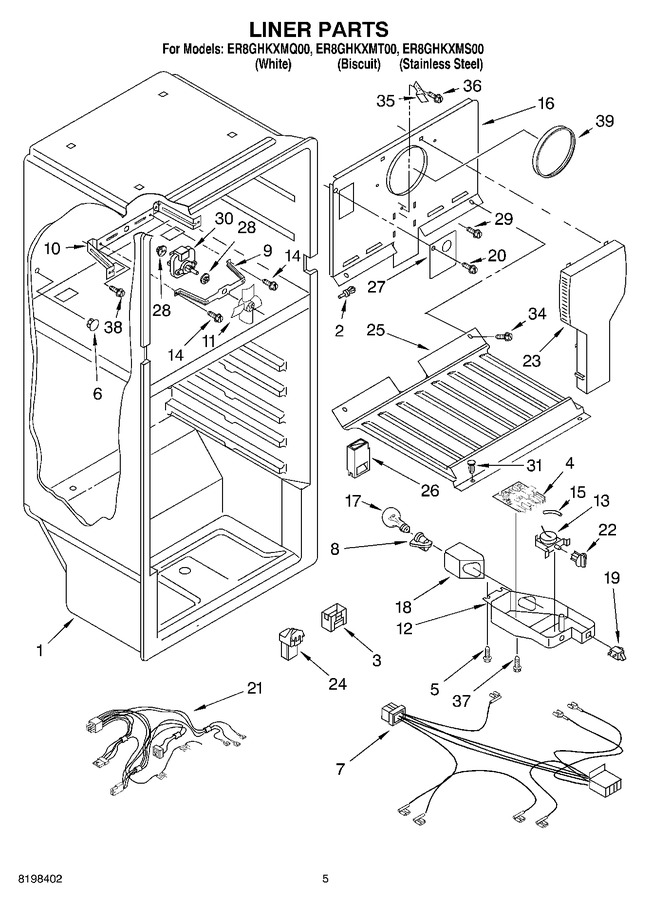

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | 939962 | Rivet |
|
$ 12.42 | |||||
| 3 | 2183061 | Cover, Air Diffuser |
|
$ 36.62 | |||||
| 4 | 4388931 | Adaptive Defrost Control (Replaces: 2188160) |
|
Immediately | $ 243.98 | ||||
| 5 | WP489174 | Screw (Replaces: 489174) |
|
$ 7.30 | |||||
| 6 | WP941839 | Hole, Plug (Replaces: 941839) |
|
$ 8.03 | |||||
| 7 | 2265930 | Wire Assembly, Control Box (Replaces: 2215115) |
|
$ 139.61 | |||||
| 8 | 4387478 | Socket, Light (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | WPW10180172 | Fan Support Bracket (Replaces: 2197404) |
|
$ 42.28 | |||||
| 10 | 2197405 | Fan Mounting Bracket |
|
$ 30.23 | |||||
| 11 | WP2169142 | Fan Blade (Replaces: 2169142) |
|
Immediately | $ 43.41 | ||||
| 12 | 2215210 | Control Box |
|
$ 128.48 | |||||
| 13 | WPW10511937 | Thermostat (Replaces: 2201754) |
|
Immediately | $ 180.41 | ||||
| 14 | WP489399 | Screw (Replaces: 489399) |
|
$ 7.30 | |||||
| 15 | WP2196003 | Thermostat Tube Barrier (Replaces: 1118680) |
|
$ 8.35 | |||||
| 16 | 2201205 | Cover, Evaporator |
|
- | |||||
| 17 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 18 | W11034434 | Light Shield (Replaces: 9791702) |
|
Immediately | $ 108.92 | ||||
| 19 | W11384469 | Rocker Arm Switch (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | WP489442 | Screw (Replaces: 489438) |
|
Immediately | $ 11.49 | ||||
| 21 | 2319442 | Wiring-freezer (Replaces: 2215114) |
|
$ 261.78 | |||||
| 22 | WP2202885 | Control Knob (Replaces: 2202885) |
|
$ 27.70 | |||||
| 23 | 9790408 | Air Tower |
|
$ 85.98 | |||||
| 24 | 2197052 | Hood And Foil Assembly |
|
- | |||||
| 25 | 2174798 | Freezer Floor |
|
$ 70.51 | |||||
| 26 | 2221992 | Air Diffuser |
|
$ 35.67 | |||||
| 27 | WP2217784 | Cover, Hole (Replaces: 2217784) |
|
$ 47.22 | |||||
| 28 | WP2264462 | Grommet-motor (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 29 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 30 | WPW10188389 | Evaporator Fan Motor (Replaces: 2201212) |
|
Immediately | $ 76.83 | ||||
| 31 | 489115 | Fastener-snap In |
|
$ 5.51 | |||||
| 34 | WP489474 | Screw (Replaces: 489474) |
|
Immediately | $ 8.55 | ||||
| 35 | 2197416 | Deflector, Air |
|
$ 80.24 | |||||
| 36 | WP965173 | Screw (Replaces: 487415) |
|
Immediately | $ 11.87 | ||||
| 37 | WP487353 | Screw (Replaces: 488693) |
|
$ 7.95 | |||||
| 38 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 11.49 | ||||
| 39 | 2213999 | Ring, Evaporator Cover |
|
- |
