SELECT A DIAGRAM

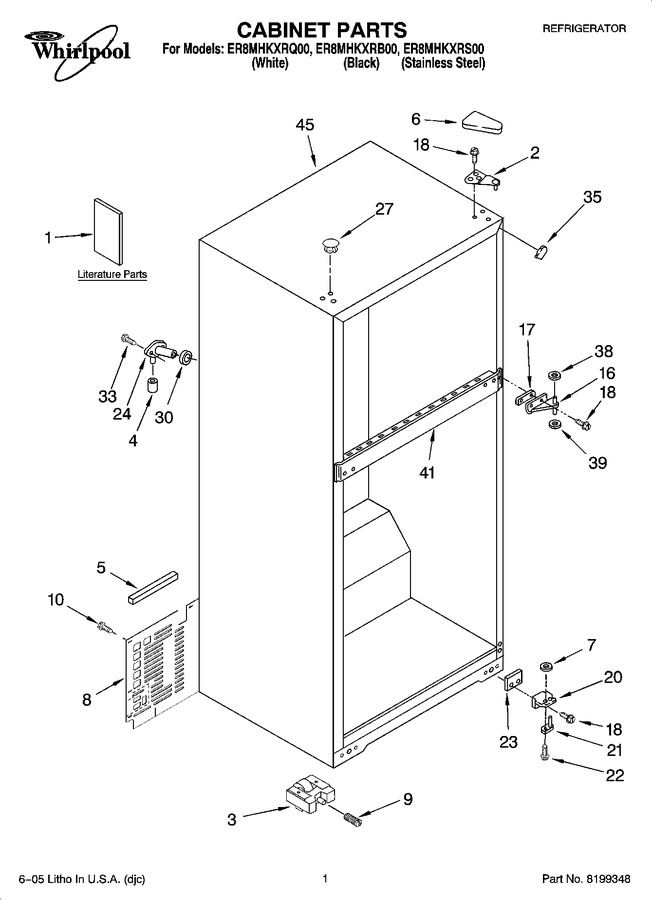

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Following May Be Purchased Do-it-yourself Repair Manuals |
|
- | |||||
| 1 | 2265301 | Use & Care Guide |
|
- | |||||
| 1 | 2265693 | Energy Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual, Ref./fzr. |
|
$ 30.30 | |||||
| 1 | 2265591 | Service & Wiring Sheet |
|
- | |||||
| 2 | WP2261963 | Hinge Butt, Top (Replaces: 2261963) |
|
Immediately | $ 99.45 | ||||
| 3 | 2217757 | Roller-front |
|
- | |||||
| 4 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 8.26 | |||||
| 5 | 2264535 | Foam Block |
|
- | |||||
| 6 | WP2213363 | Cover, Hinge (black) (Replaces: 2213363) |
|
Immediately | $ 18.21 | ||||
| 6 | WP2213360 | Cover-hinge (white) (Replaces: 2213360) |
|
$ 19.23 | |||||
| 7 | WP488296 | Washer (Replaces: 488296) |
|
$ 7.19 | |||||
| 8 | WP2264132 | Cover, Unit (Replaces: 2264132) |
|
$ 108.35 | |||||
| 9 | 2222100 | Screw |
|
$ 99.81 | |||||
| 10 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 16 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 78.16 | |||||
| 17 | 2215385 | Shim, Hinge Center (black) |
|
$ 86.99 | |||||
| 17 | 2166043 | Shim, Hinge Center (white) |
|
$ 66.44 | |||||
| 18 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 29.09 | ||||
| 20 | WP2325482 | Hinge Butt, Bottom (Replaces: 2221926) |
|
Immediately | $ 76.19 | ||||
| 21 | 9791682 | Hinge-pin, Bottom |
|
$ 26.60 | |||||
| 22 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 10.91 | |||||
| 23 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 7.77 | ||||
| 24 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 11.99 | ||||
| 27 | WP2151652 | Hole Plug (6) (white) (Replaces: 2201012) |
|
$ 21.78 | |||||
| 27 | WP2183998 | Hole Plug (6) (black) (Replaces: 2183998) |
|
$ 18.10 | |||||
| 30 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.93 | ||||
| 33 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.79 | ||||
| 35 | W11500943 | Corner Filler (black) (Replaces: 2215384) |
|
$ 7.60 | |||||
| 35 | W10859322 | Corner Filler (white) (Replaces: 2166003) |
|
$ 7.70 | |||||
| 38 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.88 | ||||
| 39 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 41 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 45 | N/A | Cabinet (not A Serviceable Part) |
|
- |
