01 - Cabinet Parts

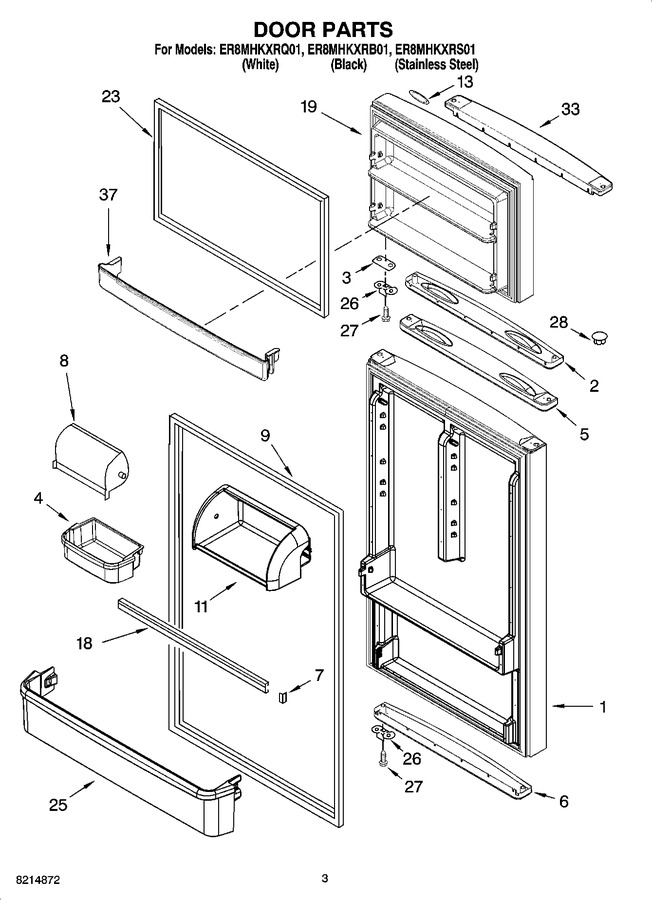

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2264716B | Refrigerator Door Panel (includes Illus. 5,6 & 9) (black) |
|
- | |||||
| 1 | 2264716S | Refrigerator Door Panel (includes Illus. 5,6 & 9) (stainless Steel) |
|
$ 150.65 | |||||
| 1 | 2316153W | Refrigerator Door Panel (includes Illus. 5,6 & 9) (white) |
|
- | |||||
| 2 | 2265645W | Handle, Freezer (white) (Replaces: 2265646W) |
|
$ 219.98 | |||||
| 2 | 2258858B | Handle, Freezer (black) |
|
- | |||||
| 3 | 2258681B | Shim, Door Stop (black) |
|
$ 45.33 | |||||
| 3 | WP2258681W | Shim, Door Stop (white) (Replaces: 2258681W) |
|
Immediately | $ 7.55 | ||||
| 4 | W11396038 | Bin, Door (3) (Replaces: 2266150) |
|
$ 161.94 | |||||
| 5 | 2222045 | Handle, Refrigerator (black) |
|
$ 41.70 | |||||
| 5 | 2265645W | Handle, Refrigerator (white) |
|
$ 219.98 | |||||
| 6 | 2265647W | Endcap, Bottom (white) |
|
$ 63.82 | |||||
| 6 | 2222048 | Endcap, Bottom (black) |
|
- | |||||
| 7 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 8 | 2264478 | Door, Compartment |
|
$ 32.58 | |||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 323.85 | |||||
| 9 | WP2319264T | Door Gasket, Magnetic (white) (Replaces: 2263258) |
|
Immediately | $ 192.71 | ||||
| 11 | 2264477 | Housing, Compartment (Replaces: 2266057) |
|
$ 97.04 | |||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 93.18 | ||||
| 18 | 2264480 | Trim, Door |
|
$ 38.67 | |||||
| 19 | 2264717S | Freezer Door Panel (includes Illus. 2,23 & 33) (stainless Steel) |
|
$ 428.40 | |||||
| 19 | 2316154W | Freezer Door Panel (includes Illus. 2,23 & 33) (white) |
|
$ 50.35 | |||||
| 19 | 2264717B | Freezer Door Panel (includes Illus. 2,23 & 33) (black) |
|
- | |||||
| 23 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 23 | WP2319263T | Door Gasket, Magnetic (white) (Replaces: 2263257) |
|
Immediately | $ 169.53 | ||||
| 25 | 2266146 | Trim, Door Shelf |
|
- | |||||
| 26 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 27 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 28 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 28 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 8.19 | ||||
| 33 | 2265644W | Endcap, Top (white) |
|
$ 148.05 | |||||
| 33 | 2252863 | Endcap, Top (black) |
|
Immediately | $ 155.53 | ||||
| 37 | 2266148 | Trim, Door Shelf (freezer) |
|
Immediately | $ 262.35 |
