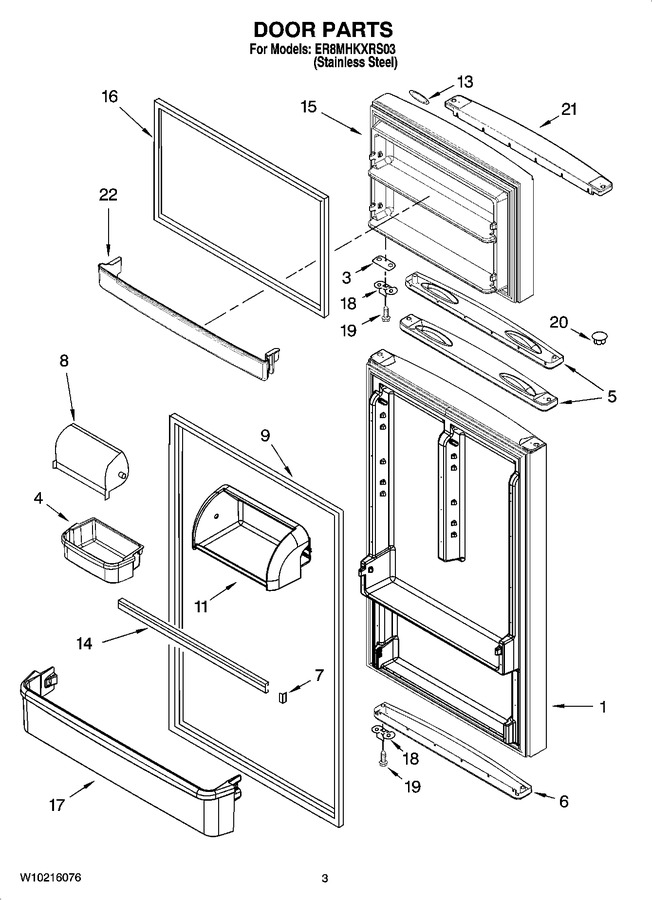

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10209800 | Refrigerator Door Panel (includes Illus. 5,6 & 9) (stainless Steel) |
|
- | |||||
| 3 | 2258681B | Shim, Door Stop (black) |
|
$ 45.33 | |||||
| 4 | W11396038 | Bin, Door (3) (Replaces: 2266150) |
|
$ 161.94 | |||||
| 5 | 2222045 | Handle (black) |
|
$ 41.70 | |||||
| 6 | 2222048 | Endcap, Bottom (black) |
|
- | |||||
| 7 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 8.03 | ||||
| 8 | 2264478 | Door, Compartment |
|
$ 32.58 | |||||
| 9 | WP2319264B | Door Gasket, Magnetic (black) (Replaces: 2264723) |
|
$ 323.85 | |||||
| 11 | 2264477 | Housing, Compartment (Replaces: 2266057) |
|
$ 97.04 | |||||
| 13 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 93.18 | ||||
| 14 | 2316061 | Trim, Door |
|
- | |||||
| 15 | W10209793 | Freezer Door Panel (includes Illus. 5,16 & 21) (stainless Steel) |
|
- | |||||
| 16 | WP2319263B | Door Gasket, Magnetic (black) (Replaces: 2264722) |
|
Immediately | $ 268.28 | ||||
| 17 | 2266146 | Trim, Door Shelf |
|
- | |||||
| 18 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 19 | W10276642 | Screw (Replaces: 8533904) |
|
$ 6.41 | |||||
| 20 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 24.21 | |||||
| 21 | 2252863 | Endcap, Top (black) |
|
Immediately | $ 155.53 | ||||
| 22 | 2266148 | Trim, Door Shelf (freezer) |
|
Immediately | $ 262.35 |
